61 13... Crimping Micro Quadlock System contacts (MQS)

Special tools required:

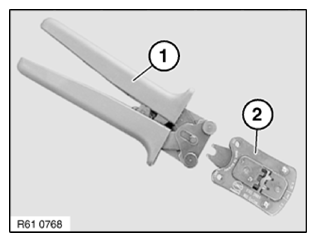

To crimp MPQ contacts, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 324 (2) from crimping set 61 4 320 .

NOTE: Hand pliers (1) open automatically until stop when handles are pressed together.

Fig 1: Crimp MPQ Contacts And Hand Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

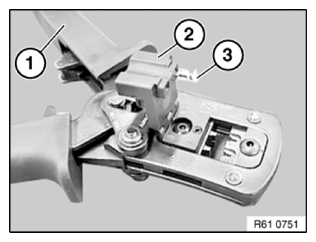

Open hand pliers (1).

Fold up contact carrier (2).

Insert MQS contact (3) in contact carrier (2).

Fold back contact carrier (2).

Fig 2: Folding Back Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING OFF AND STRIPPING INSULATION FROM CABLES .

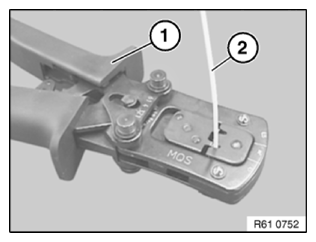

Close hand pliers (1) one notch.

Insert stripped cable (2).

Close hand pliers (1) fully.

Fig 3: Inserting Stripped Cable

Courtesy of BMW OF NORTH AMERICA, INC.

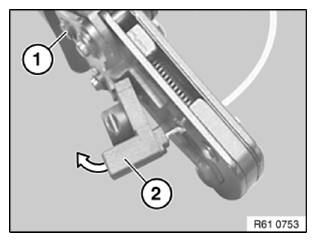

Open hand pliers (1).

Open contact carrier (2) gently and carefully remove MQS contact.

IMPORTANT: Check contact for correct crimping.

Fig 4: Opening Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
