Remove clean air pipe (B36, B38) (Cooper)

Preliminary work needed:

Removal:

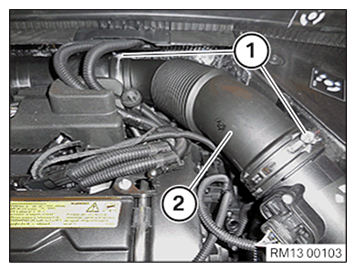

Release clamps (1).

Release clean air pipe (2) from intake silencer housing.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Release wiring harness from cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

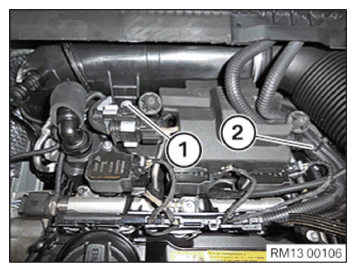

Remove screw (1).

Lay wiring loom (2) to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

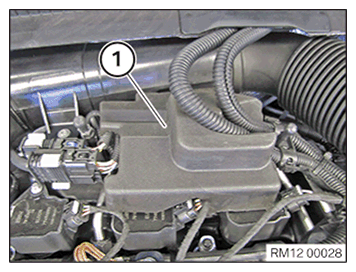

Remove sound insulation (1) from high-pressure pump.

Courtesy of BMW OF NORTH AMERICA, INC.

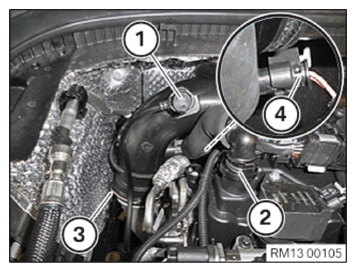

Release ventilation line (1) from clean air pipe.

Detach ventilation line (2) from cylinder head cover.

Unlock clamp (3).

Raise clean air pipe slightly until connector (4) is accessible from heating element on clean air pipe.

Unlock plug (4) and remove.

Feed out clean air pipe and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in clean air pipe and attach connector (4) to heating element.

Connector (4) must snap audibly into place.

Attach clean air pipe to exhaust turbocharger. Lock clamp (3).

Clamp (3) must audibly snap into place.

Connect ventilation line (1) to clean air pipe.

Connect ventilation line (2) to cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Install sound insulation (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 13 71 6AZ .

Lay wiring harness (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1) of wiring harness mounting.

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamps (1).

Tightening torque 13 71 3AZ .

Release clean air pipe (2) from intake silencer housing.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
