REP-TAT-P-2860-02 Installing transmission input-RPM sensor 2 (7DCT300)
NOTE:
Extreme cleanliness must be observed.
Contaminated parts must be cleaned before removing the transmission input-RPM sensor.
Contaminated parts must be cleaned before removing the transmission input-RPM sensor.
- Install the transmission input-RPM sensor (2).
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
| Gearbox input-speed sensor | |
| Replace screw. | tightening torque 10 Nm |

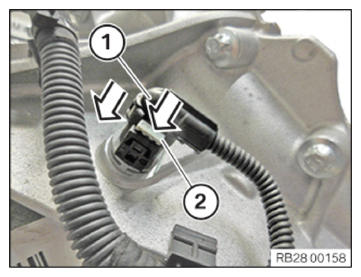

- Install the connector (1).
- Press the connector fastener (2) in the direction of the arrow until it audibly engages.
Follow-up work:
- Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL ARCH COVER
- Refer to INSTALLING FRONT OR REAR WHEEL
- Refer to INSTALLING FRONT UNDERBODY PROTECTION
- Refer to CONNECTING NEGATIVE BATTERY CABLE
