Removing and installing/replacing rail (B36, B38) (Cooper)

Special tools required:

• 2 358 417
• 11 8 720
• 13 0 190
• 13 0 280
• 2 358 022

Before removing the rail and injectors, clean or vacuum off injector shafts.

Recycling:

Fuel leakages when fuel lines are detached.

Catch and dispose of leakage fuel.

Observe country-specific waste disposal regulations.

Preliminary work needed:

• Remove INTAKE SILENCER HOUSING .
• Remove ACOUSTIC COVER .
• Remove IGNITION COILS .

Removal:

Unscrew the screws (1).

Release wiring harness from cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw (1).

Slightly push clean air pipe (2) to the rear and remove the sound insulation (3) of the high pressure pump.

Courtesy of BMW OF NORTH AMERICA, INC.

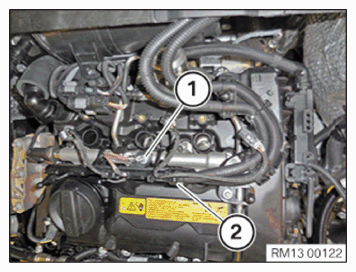

Slacken nut (1).

Detach the wiring harness (2) from the rail.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Release connector (1) and remove from the injectors.

Lay wiring harness to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

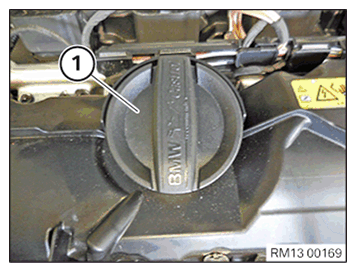

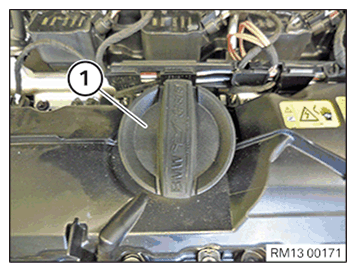

Unscrew the sealing cap (1) of the oil filler neck.

Courtesy of BMW OF NORTH AMERICA, INC.

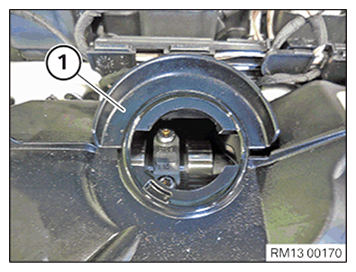

Dismount the drip shield (1) from the cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on the sealing cap (1) to the oil filler neck.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and detach.

Release union nuts (2) and (3).

Detach pressure line between high pressure pump and rail.

Courtesy of BMW OF NORTH AMERICA, INC.

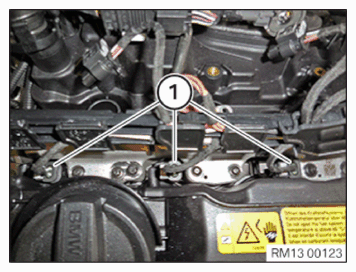

Unlock connector from rail pressure sensor and detach.

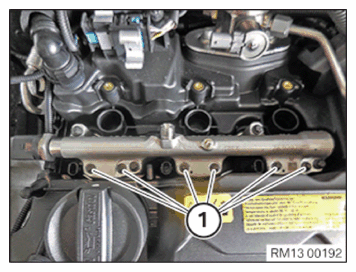

Release screws (1) M5x30.

Remove screws (1).

Do not disassemble the tightly screwed combination from the injectors with the rail from the cylinder head!

Screws (1) must not be reused!

Parts:  Screws M5x30.

Catch and dispose of leakage fuel with suitable materials.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) M6x30.

Remove screws (1). Screws (1) must not  be reused!

Parts:  Screws M6x30.

Remove rail upwards.

Injectors remain in the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

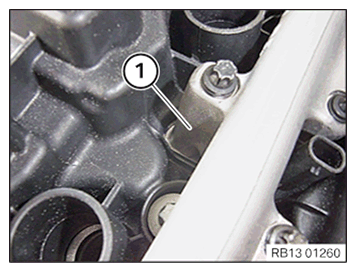

If fitted:

Remove gaskets (1).

Gaskets (1) are not  required and will not  be installed anymore!

Courtesy of BMW OF NORTH AMERICA, INC.

Injectors may be pulled out with a maximum tensile force of 2000 N  and twisted only to 6 Nm  (torsion movement). If these values are exceeded, the injectors must be replaced  !

The special tool 2 358 417 is required in order to remove the injectors.

Using the special tool 2 358 417 ensures that the tensile force of 2000 N will not be exceeded.

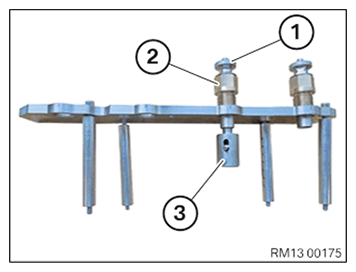

Special tool 2 358 417 consists of:

• (1) Threaded sleeves
• (2) Pull-out thread (left-hand thread)
• (3) Stand for injector

Courtesy of BMW OF NORTH AMERICA, INC.

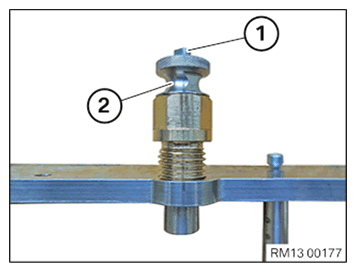

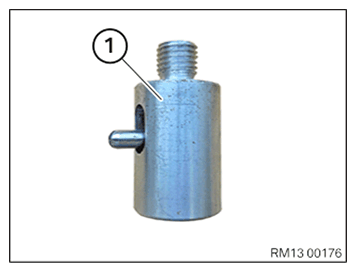

Unscrew stand for injectors (1) from special tool 2 358 417.

Courtesy of BMW OF NORTH AMERICA, INC.

Press in lock (1) and remove threaded sleeve (2) from special tool 2 358 417.

Courtesy of BMW OF NORTH AMERICA, INC.

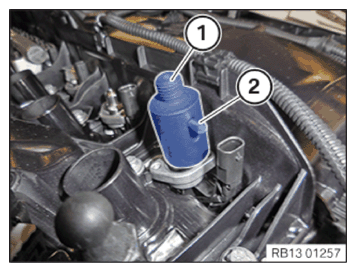

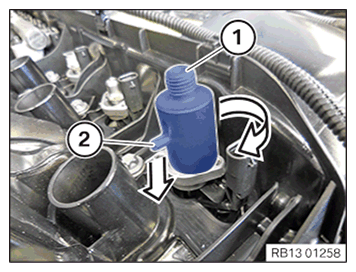

Install all stands (1) for the injectors.

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate the mounting (1) at 90° and latch the lock (2) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Install all stands (1) for the injectors.

Therefore, position the stands and turn them for 90°.

Make sure the lock (2) engages.

Courtesy of BMW OF NORTH AMERICA, INC.

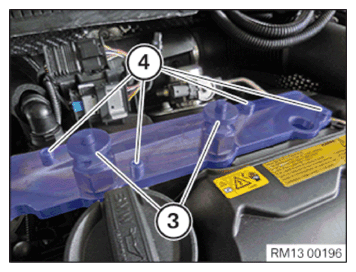

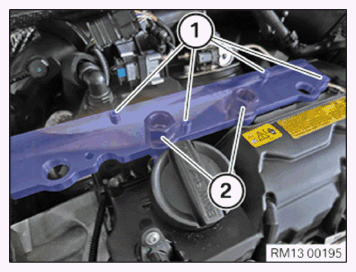

Attach special tool 2 358 417 to cylinder head.

Tighten screws (1) hand-tight.

Screw in pull-out thread (2) completely.

The pull-out thread (2) is a left-hand thread  .

Courtesy of BMW OF NORTH AMERICA, INC.

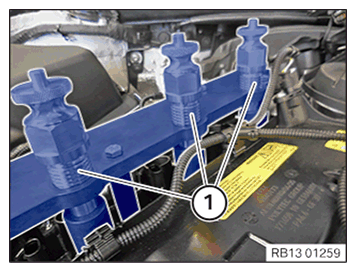

Insert threaded sleeves (3) again and screw threaded sleeves completely onto the stands for injectors.

Then tighten the screws (4) with 5 Nm.

Courtesy of BMW OF NORTH AMERICA, INC.

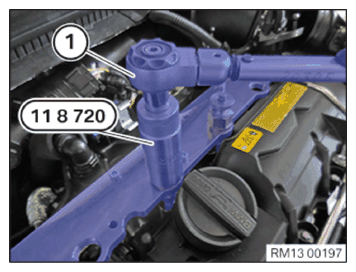

Set torque wrench to 7 Nm clockwise rotation.

Together with special tool 11 8 720 this corresponds to a tensile force of max. 2000 N.

Turn torque wrench in clockwise direction until the injector is pulled out.

This process is obligatorily to be carried out for every single injector.

Courtesy of BMW OF NORTH AMERICA, INC.

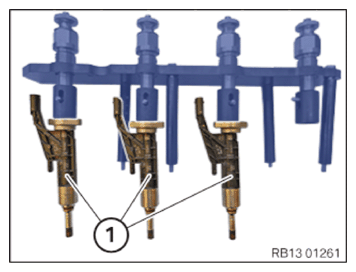

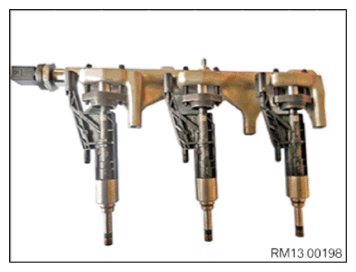

Before removing the special tool with the injectors check, whether all injectors were completely removed from the cylinder head. This can be recognized on the completely visible threads of the brass tubes.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the screws and remove the extraction tool 2 358 417 with injectors (1) carefully vertically upwards from the cylinder head.

Take off the combination of the special tool with injectors flatly on a clean table.

Courtesy of BMW OF NORTH AMERICA, INC.

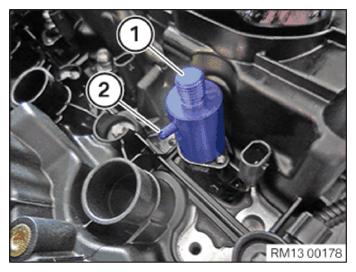

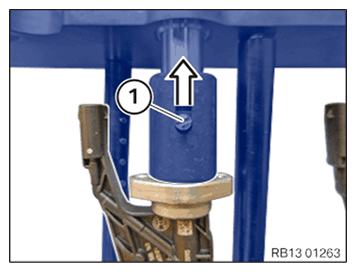

Unlatch the lock (1) of the stand upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

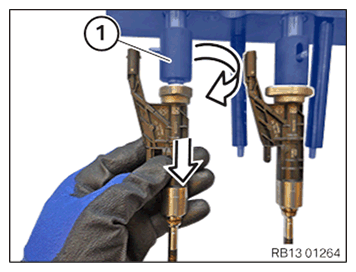

Rotate the unlocked stand (1) at 90°. Release and remove the injector downwards.

Mark injectors according to the cylinders.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Before the rail is installed, the Teflon rings at the injectors must be replaced.

Replace Teflon ring:

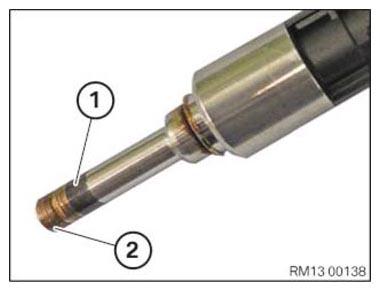

Before the injectors are installed, the Teflon rings (1) at the injectors must be replaced.

Part:  Teflon rings.

Before replacing the Teflon ring (1), make sure your hands and the work surface are clean and free of oil.

Avoid mechanical contact with injector tip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

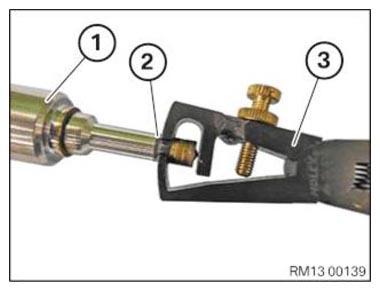

Remove Teflon ring (2) from injector (1) using special tool (3) 13 0 191 from special tool set 13 0 190.

Use a fluff-free cloth only to remove combustion residues from cylindrical part of injector tip (do not use ultrasound or other tools/agents).

Do not clean injector tip.

Courtesy of BMW OF NORTH AMERICA, INC.

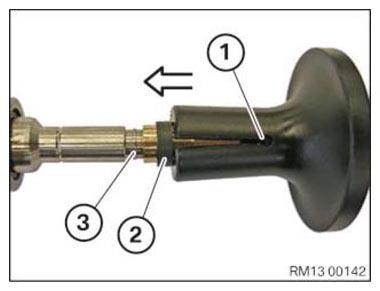

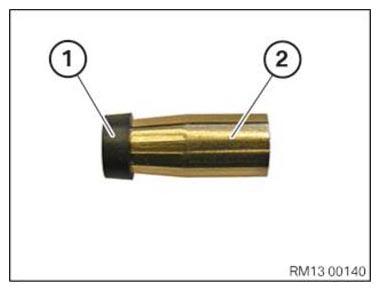

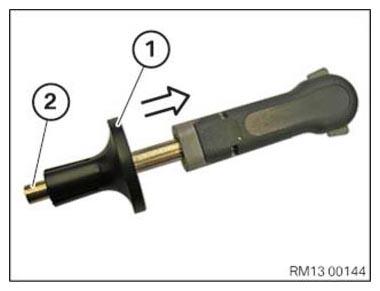

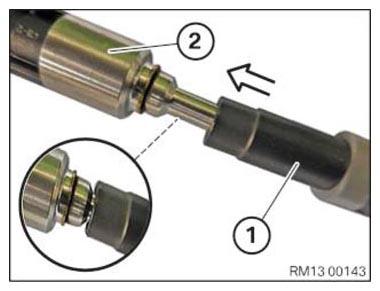

Push new Teflon ring (1) onto installation cone (2) 13 0 283 from the set of special tools 13 0 280.

Courtesy of BMW OF NORTH AMERICA, INC.

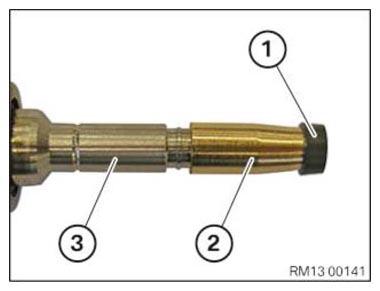

Fit Teflon ring (1) on injector tip (3) with installation cone (2) 13 0 283 from set of special tools 13 0 280.

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool (1) 13 0 281 from set of special tools 13 0 280 to slide Teflon ring into groove (3) on injector.

Courtesy of BMW OF NORTH AMERICA, INC.

To bring the widened Teflon ring to the installation dimension, special tool (1) 13 0 282 from set of special tools 13 0 280 must be slid up to stop on injector (2).

Do not use any lubricating agents.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

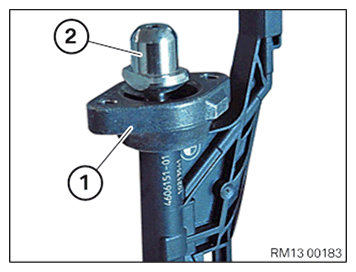

Mount retaining bridge (1) via bayonet closure (2) to injector.

If fitted:

If the retaining bridge (1) is equipped with a cast lug, the correct installation position needs to be observed.

Courtesy of BMW OF NORTH AMERICA, INC.

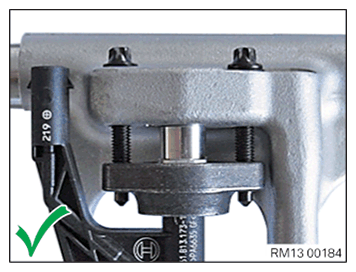

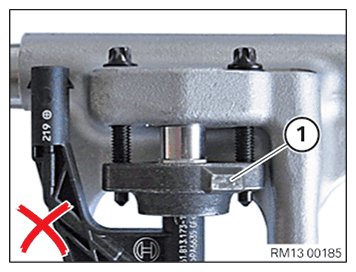

Retaining bridge mounted properly  , cast lug is at rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Retaining bridge mounted improperly  , cast lug (1) is at front.

Courtesy of BMW OF NORTH AMERICA, INC.

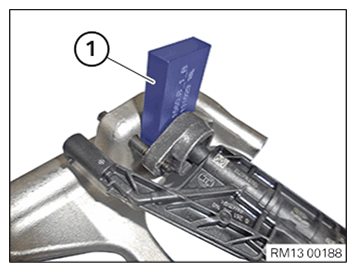

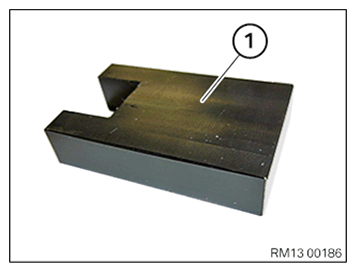

Distance gauge (1) 2 358 022.

Not using the gauge may present the risk of cracking weld seams at the injector!

The thickness of the distance gauge is 8.5 millimeter. If the actual value undershoots this dimension, the distance gauge needs to be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

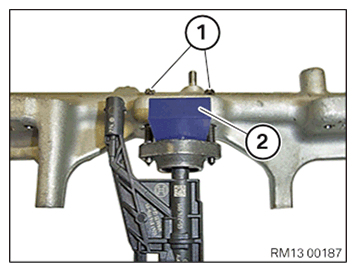

Mount injectors with retaining bridges and new screws (M5x30) to the rail.

Keep the rail on a clean table in such a way, that the holders on the Rail are visible upwards. The electrical injector connections must then lie at the left hand side of the holders of the rail.

Slide the distance gauge (2) 2 358 022 between retaining bridge and rail on top of the injector head.

Make sure the distance gauge rests against the retaining bridge!

Equally tighten both injector screws (1) M5x30 hand force until the distance gauge rests plane against the rail and the retaining bridge.

Then the distance gauge (1) 2 358 022 is to be removed again.

Repeat this operation for all injectors.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Check injectors for loose fit at the rail.

Align connectors of the injectors roughly parallel to the rail, injectors need to be freely movable!

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

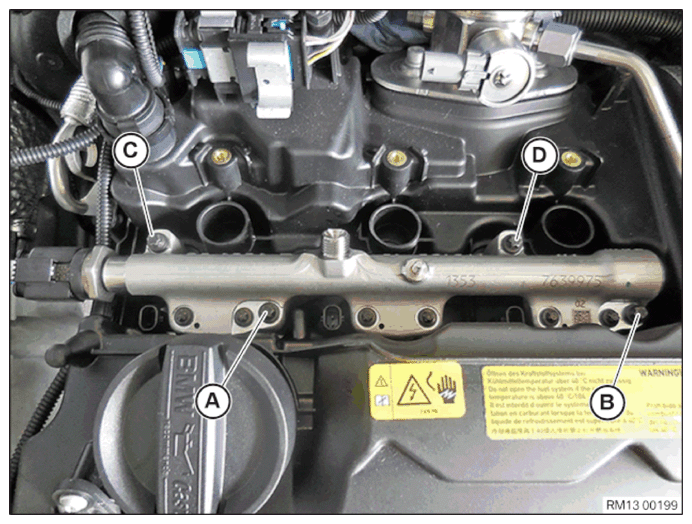

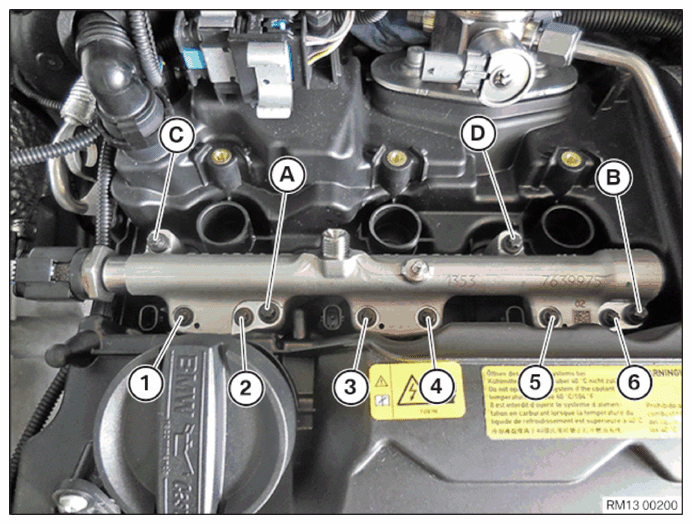

1. Position rail with injectors from the top on the cylinder head.
   1. Make sure the injector tips catch the corresponding holes in the cylinder head.
   2. Make sure the alignment lugs of the injector are properly inserted into the retaining holes on the cylinder head.
2. As soon as a resistance can be felt when pushing down, position the rail screws M6x30 (A) and (B) and tighten them hand-tight.
3. Tighten rail screws (A) and (B) alternating in every 180° steps, until the rail rests against the cylinder head (see figure below).
4. Insert rail screws (C) and (D).
5. Tighten rail screws in the following order by 5 Nm  :
   1. Tighten screw (A) by 5 Nm.
   2. Tighten screw (D) by 5 Nm.
   3. Tighten screw (B) by 5 Nm.
   4. Tighten screw (C) by 5 Nm.

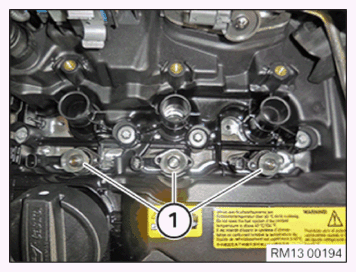

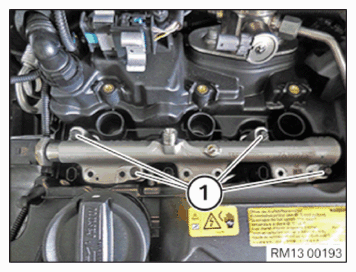

Rail bases (1) are open on cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

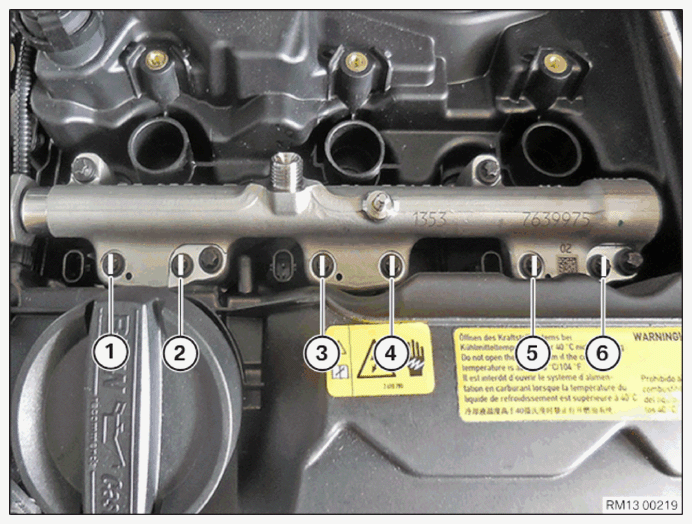

1. Now tighten injector screws M5x30 in pairs (1 with 2, 3 with 4, 5 with 6) and in alternating order for 180° hand-tight, using the socket on the extension (without reversible ratchet or torque wrench!  ).
2. Screw the injector screws M5x30 according to the following plan:

   Set torque wrench to 5 Nm  .

   Compliance with the sequence is absolutely mandatory!

   • Fuel injector 1:
     1. Tighten injector screw (1) by 90±15° with torque wrench.
     2. Tighten injector screw (2) by 90±15° with torque wrench.
     3. Repeat steps a and b until both screws have arrived at 5 Nm.
   • Fuel injector 2:
     1. Tighten injector screw (3) by 90±15° with torque wrench.
     2. Tighten injector screw (4) by 90±15° with torque wrench.
     3. Repeat steps a and b until both screws have arrived at 5 Nm.
   • Fuel injector 3:
     1. Tighten injector screw (5) by 90±15° with torque wrench.
     2. Tighten injector screw (6) by 90±15° with torque wrench.
     3. Repeat steps a and b until both screws have arrived at 5 Nm.

   Courtesy of BMW OF NORTH AMERICA, INC.

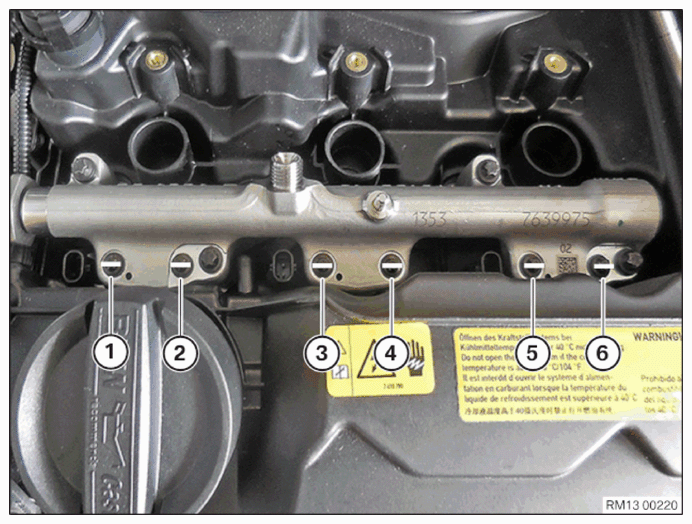

3. All injector screws (1) to (6), must be marked by a dash (see graphic).
   • Tighten injector screws with an angle of rotation!
     1. Tighten injector screw (1) with an angle of rotation of 90±15°.
     2. Tighten injector screw (2) with an angle of rotation of 90±15°.
     3. Tighten injector screw (3) with an angle of rotation of 90±15°.
     4. Tighten injector screw (4) with an angle of rotation of 90±15°.
     5. Tighten injector screw (5) with an angle of rotation of 90±15°.
     6. Tighten injector screw (6) with an angle of rotation of 90±15°.

   Courtesy of BMW OF NORTH AMERICA, INC.

4. Check whether all injector screws (1) to (6) have been tightened with an angle of rotation of 90±15°.

   All marks (dashes) must lie horizontal (see graphic).

   Courtesy of BMW OF NORTH AMERICA, INC.

5. Release rail screws M6x30 (A), (B), (C), (D) (Releasing procedure is mandatory!).

   After that, tighten rail screws again in the following order by 5 Nm  :

   1. Tighten screw (A) by 5 Nm.
   2. Tighten screw (D) by 5 Nm.
   3. Tighten screw (B) by 5 Nm.
   4. Tighten screw (C) by 5 Nm.

   Courtesy of BMW OF NORTH AMERICA, INC.

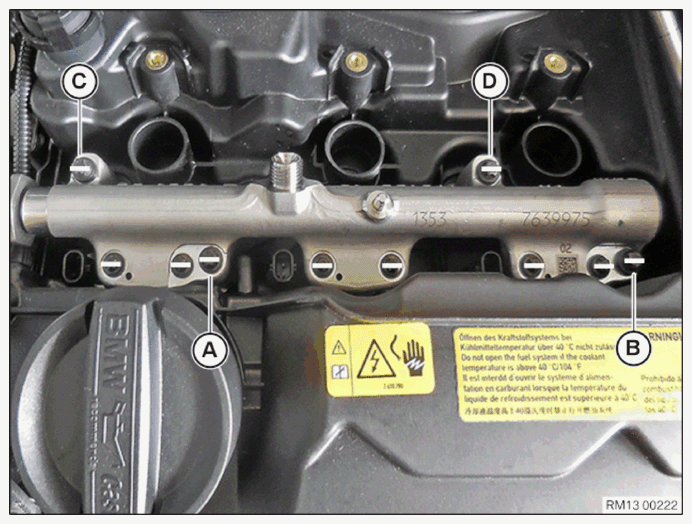

6. All rail screws (A) to (D) must be marked by a dash (see graphic).

   Tighten rail screws M6x30 (A), (B), (C), (D) with an angle of rotation of 90±15°.

   Courtesy of BMW OF NORTH AMERICA, INC.

7. Check whether all rail screws (A) to (D) were tightened by an angle of rotation of 90°.

   All marks (dashes) must lie horizontal (see graphic).

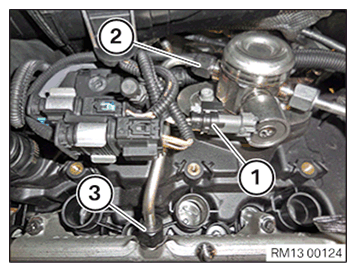

Mount high pressure line at the rail first, then mount high pressure line at the high pressure pump.

First, tighten union nuts (3) on the rail hand-tight.

Then, tighten union nut (2) on the high pressure pump hand-tight.

Tighten union nuts (3) and (2) to final torque. Tightening torque 33±2 Nm.

Attach connector (1) to high-pressure pump. Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

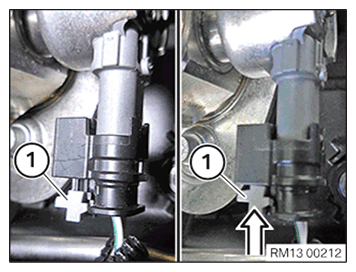

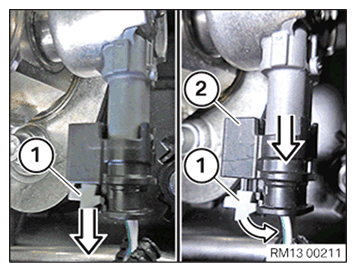

Connect connector on the high pressure pump until the lock (1) engages audibly.

Then lock the lock (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) to the injectors.

Connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

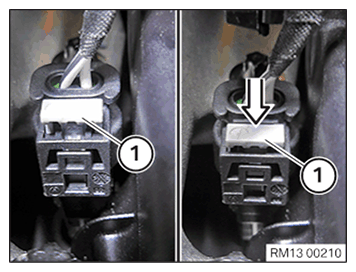

Connect connector on the injectors until the lock (1) engages audibly.

Then lock the lock (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Mount wiring harness (1) on rail.

Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install sound insulation (3).

Fit clean air pipe (2).

Tighten screw (1).

Tightening torque 13 71 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install wiring harness on cylinder head cover.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the sealing cap (1) of the oil filler neck.

Courtesy of BMW OF NORTH AMERICA, INC.

Mount the drip shield (1) on the cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on the sealing cap (1) to the oil filler neck.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install INTAKE SILENCER HOUSING .
• Install ACOUSTIC COVER .
• Install IGNITION COILS .
• Connect BATTERY GROUND LEAD.
