Service Action: Programming The Telematics Control Unit - 3G Sunset (SI M84 03 22)
Reference number: SI M84 03 22
SERVICE ACTION: PROGRAMMING THE TELEMATICS CONTROL UNIT - 3G SUNSET
TECHNICAL SERVICE BULLETIN
| MINI: | F54 MINI Clubman May 21, 2018 - June 1, 2022; F55 MINI Hardtop 4 Door April 18, 2018 - June 1, 2022; F56 MINI Hardtop 2 Door May 29, 2018 - June 1, 2022; F57 MINI Convertible June 12, 2018 - June 7, 2022; F60 MINI Countryman April 18, 2018 - June 7, 2022 |
SERVICE INFORMATION
This Service Information Bulletin (Revision 2) replaces SI M84 03 22 dated September 2022 .
What's New (Specific text highlighted):
- Selected as "Mobile Friendly"
- Correction Section revised
- Procedure Section revised
- Parts Section removed (not applicable)
[x] THIS REPAIR IS MOBILE FRIENDLY
AFFECTED VEHICLES
Affected vehicles which require this Campaign to be completed will show it as "Open" when checked either in AIR, the "Service Menu" of DCSnet (Dealer Communication System), ISPA NEXT or Warranty Vehicle Inquiry.
SITUATION
The 3G network in the US has been shut down. This means that only the 4G network will be available. In the 4G network, voice calls will be transferred via Voice over LTE (VoLTE) function. For this purpose, the SIM card must perform an IMS registration in the mobile communication network. Due to a production error, the telematics control units were delivered without an IMS configuration.
The Connected Drive voice services (Concierge Call, MINI Assistance and emergency call voice) can no longer be used regionally in the US in vehicle with telematics control units ATM-1 and TCB-4G.
Voice control of the vehicle and all other telephone (paired mobile devices) functions are not affected. Emergency call location data is unaffected.
CORRECTION
Manually select the Telematics Control Unit to program using the most current version of ISTA.
PROCEDURE
The Telematics Control Unit must be programmed to write the IMS configuration into it. The vehicle's electrical system integration level (I-level) isn't important. The act of programming itself will initiate the update to the IMS configuration.
When programming with ISTA, only those control units for which a more up-to-date software is available will be identified to be programmed.
If the Telematics Control Unit is not listed as part of the measures plan, it must be manually selected.
Start a programming session with ISTA
- Select "Software Update"
- Select "Advanced"

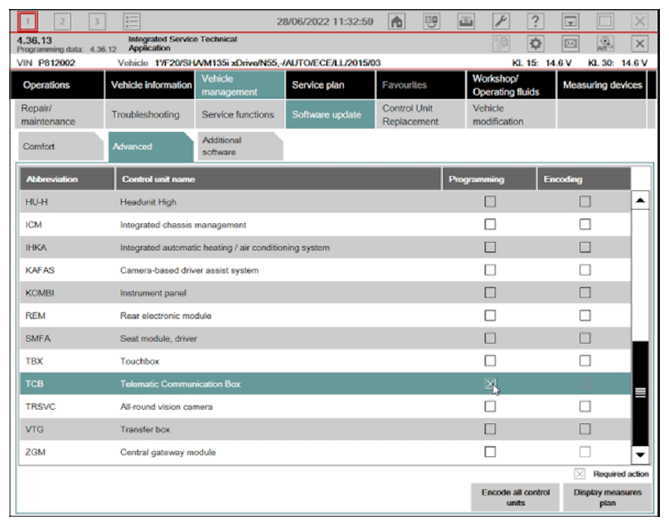

- Select the Telematics Control Unit (ATM or TCB) and check off the "Programming" box
- Determine Measures plan and complete the programming.
- Follow the rework list for any final initializations or calibrations.
After the programming has been fully completed, check functionality of the system.
Always connect a MINI-approved battery charger/power supply ( SI M04 10 09 ) .
For information on programming and coding with ISTA, refer to Dealer Universal Portal/TIS/Technical Documentation/Diagnostics and Programming/Programming Documentation.
CLAIM INFORMATION
During this workshop visit, the affected vehicle may also show one or more programming and encoding Technical Campaign repairs open, the programming and encoding procedure may only be invoiced one time.
Select one of these open Technical Campaigns to perform and submit for updating the vehicle to the required I-level or higher.
For this Service Acton, if the Telematics Control Unit is not listed as part of the measures plan as noted above, it must be manually selected prior to programming the vehicle.
Please be sure to also perform any additional before and/or after work (including attaching labels) as required by the open campaigns on the vehicle.
Close any other open programming and encoding Campaign repairs as outlined in the corresponding Service Information Bulletin.
As determined by the above, reimbursement for this Service Action will be via normal claim entry utilizing the work package information below that applies.
| Defect Code: | 0084150200 | F5x F60 Program control units (telematics control unit - Sunset) |
COMPLETION BEFORE THE FIRST VEHICLE DELIVERY TO A CUSTOMER OR THE VEHICLE IS ALREADY IN THE WORKSHOP
| Work Pkg | Labor Operation | Description (Plus work) | Labor Allowance |
|---|---|---|---|
| # 1 | 00 72 901 | Programming and encoding the vehicle control units, includes Carrying out vehicle test (00 00 556/61 21 528) | 8 FRU |
| Or: | |||
| # 2 | 00 72 902 | Programming and encoding the vehicle control units was performed in conjunction with another campaign/repair prior to or during this workshop visit (vehicle is already at the specified Target integration level or higher, no repair is necessary) | 1 FRU |
Or:
THE VEHICLE ARRIVES AT YOUR DEALER AND THIS SERVICE ACTION SHOWS OPEN (NO OTHER MAIN WORK WILL BE PERFORMED OR CLAIMED DURING THIS WORKSHOP VISIT)
| Work Pkg | Labor Operation | Description (Main work) | Labor Allowance |
|---|---|---|---|
| # 3 | 00 72 319 | Programming and encoding the vehicle control units, includes Carrying out vehicle test (00 00 006/61 21 528) | 9 FRU |
| Or: | |||
| # 4 | 00 72 320 | Programming and encoding the vehicle control units was performed in conjunction with another campaign/repair prior to this workshop visit (vehicle is already at the specified Target integration level or higher, no repair is necessary) | 1 FRU |
Only one of the flat rate labor operation codes listed above can be used for claim submission/reimbursement purposes. Also, only one Main work flat rate labor operation code can be claimed per workshop visit.
CLAIM REPAIR COMMENTS
Only reference the SIB number and the work package (Pkg) number performed in the RO technician notes and the claim comments (For example: M84 03 22 WP 1), unless otherwise required by State law.
PROGRAMMING AND ENCODING - VEHICLE CONTROL UNITS (RO AND CLAIM COMMENTS REQUIRED)
This procedure automatically reprograms and encodes any vehicle control modules that do not have the latest software I-level.
If one or more control modules fail during the reprogramming procedure, claim the required consequential repair work procedures to address this issue (including performing the IRAP Control Unit Recovery first as required, refer to the SIB in AIR) under the Defect Code in this bulletin with the labor operations in AIR that apply.
Please explain the additional work procedures that were performed (The why and the what) on the repair order and in the claim comments.
For covered repairs that address control module failures that occurred prior to performing this reprogramming procedure, claim this work with the Defect Code and labor operations (including the diagnosis that applies*) in AIR that apply.
*Based on which one applies to your dealer, please refer to SI M01 01 20 or M01 04 20 for the applicable procedure for documenting, claiming, and explaining, on the RO and in the claim comments, your diagnosis work time (WT), job/repair work time (WT), and the vehicle repairs your dealer performed, unless otherwise required by State law.
