63 11... Installing headlight repair kit

Preliminary work needed:

• Remove headlight. See REMOVING HEADLIGHT  or REMOVING HEADLIGHT - LED TECHNOLOGY .

Replacement of headlight is not required!

Holders from the repair kit are marked with an "L" for the left or "R" for the right side.

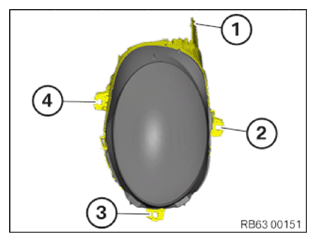

Fig 1: Locating Headlight Holders Damage (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

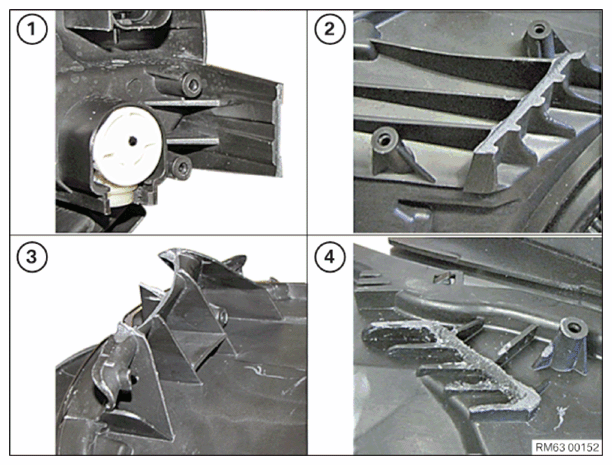

Fig 2: Locating Headlight Holders Damage (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove damaged holders (1, 2, 3, 4) as shown above.

Fig 3: Removing Damaged Holders

Courtesy of BMW OF NORTH AMERICA, INC.

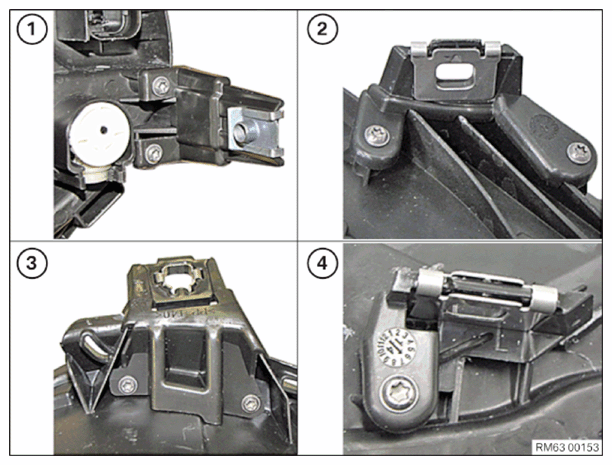

Mount holder from repair kit (1, 2, 3, 4) as illustrated and tighten using the enclosed screws.

After the repair:

• ADJUST HEADLIGHTS
