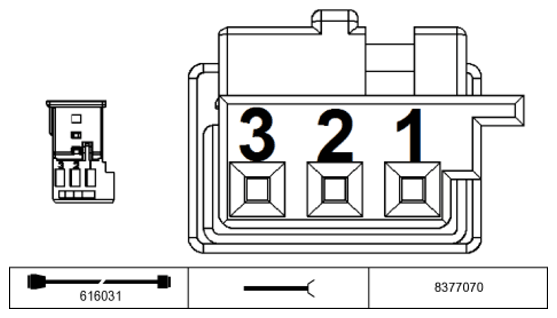

Headunit A42*17B Connector End View
Pin Assignments At Plug Connector A42*17B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | M | Shield | Electrochromic interior rear view mirror |
| 2 | E | Data cable toll function | Electrochromic interior rear view mirror |
| 3 | E | Data cable toll function | Electrochromic interior rear view mirror |
