Electromechanical Power Steering A67*3B Connector End View

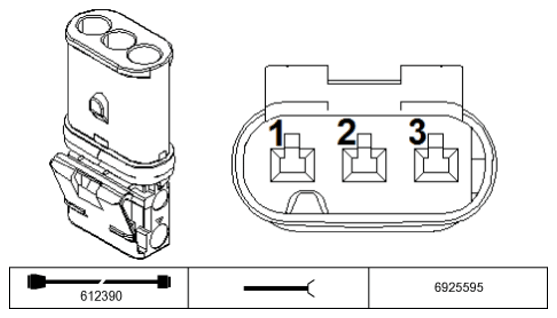

Fig 1: Electromechanical Power Steering A67*3B Connector End View

Courtesy of BMW OF NORTH AMERICA, INC.

Pin Assignments At Plug Connector A67*3B

Pin	Type	Description /Signal type	Connection /Measuring information
1	E	Supply, terminal 15	Fuse F54
2	E/A	FlexRay bus signal	A258 Body Domain Controller, module 8
3	E/A	FlexRay bus signal	A258 Body Domain Controller, module 8
