24 35 566 Replacing speed sensor (input) (AISIN F21FT)

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL . Make a note of drained ATF quantity.

Use only the approved TRANSMISSION OIL .

Otherwise the automatic transmission may incur extensive damage!

Do not drain oil before the transmission has cooled down.

Necessary preliminary work:

Removal:

Release screw (1).

Remove sensor (2).

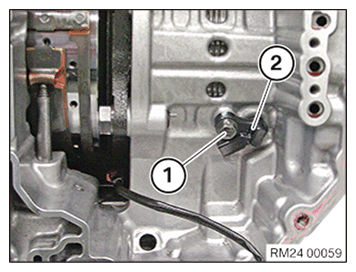

Fig 1: Sensor And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install sensor (2) and fasten with screw (1).

IMPORTANT: Coat sealing ring with clean transmission oil.

Fig 2: Sensor And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque: 24 35 1AZ .
