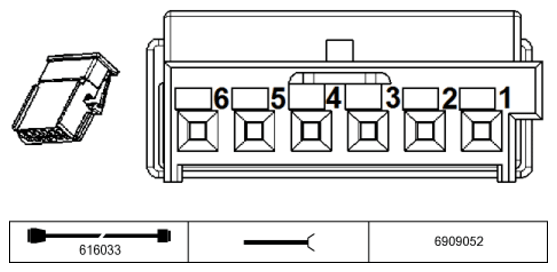

Roof Function Center E131*1B Connector End View
Pin Assignments At Plug Connector E131*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Activation, interior light | Connector 58g |
| 2 | E | Switch signal, interior lighting | Body Domain Controller |
| 3 | M | Ground | Ground connector |
| 4 | E | Activation, interior light | Body Domain Controller |
| 5 | E | Activation, interior light | Solder connector |
| 6 | -- | Not used |
