61 34... Removing and installing/replacing 12-V power socket

Special tools required:

Preliminary work needed:

Front center console:

Disconnect the connector from the socket through the opening.

Remove the socket with a special tool. See Fig 3.

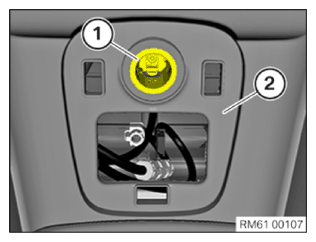

Fig 1: Locating Front Center Console And Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Trunk, right:

Remove the socket with a special tool. See Fig 3.

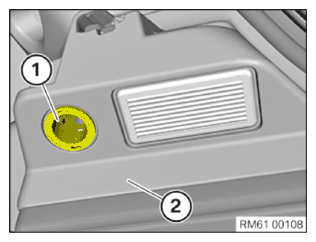

Fig 2: Locating Right Trunk And Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out 12-V power socket from housing with special tool 61 0 250 until connector is at bottom of light ring.

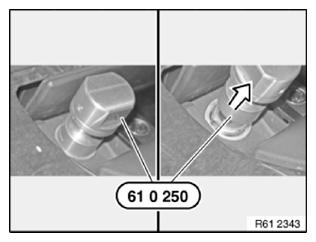

Fig 3: Pulling Out 12-V Power Socket From Housing With Special Tool (61 0 250)

Courtesy of BMW OF NORTH AMERICA, INC.
