61 13... Socket housings, 5-pin, 8-pin, System MQS/MPQ

Manufactured by AMP:  The following contact types without single conductor seal can be fitted in the connector housings:

• MQS (Micro Quadlock System)
• MPQ, width 2.8 mm (Micro Power Quadlock)
• MPQ, width 5.2 mm (Micro Power Quadlock)

Socket housing, 5-pin (Hybrid System MQS/MPQ):

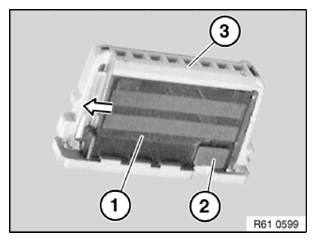

Raise fastener (1) over snap-in lug (2) and detach from contact carrier (3).

Fig 1: Detaching Contact Carrier (5-Pin)

Courtesy of BMW OF NORTH AMERICA, INC.

Socket housing, 8-pin (MQS):

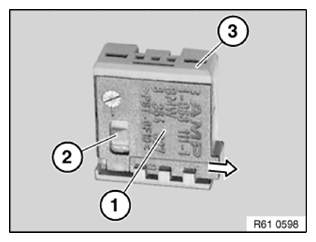

Raise fastener (1) over snap-in lug (2) and detach from contact carrier (3).

Fig 2: Detaching Contact Carrier (8-Pin)

Courtesy of BMW OF NORTH AMERICA, INC.

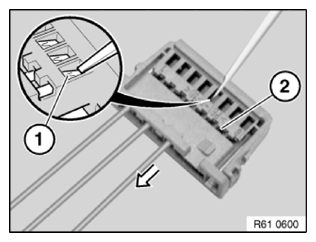

Hold down snap-in hooks (1) of contact and pull cable with contact as far as secondary lock (2).

Fig 3: Pulling Cable With Contact As Far As Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

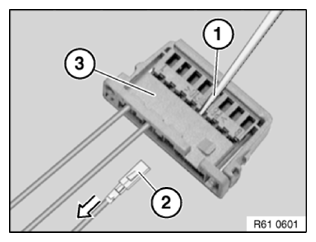

Hold down snap-in hooks in secondary lock (1) again and pull cable with contact (2) completely out of contact carrier (3).

Fig 4: Pulling Cable With Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
