61 13... Inline connectors, 6-, 8-pin, System MQS

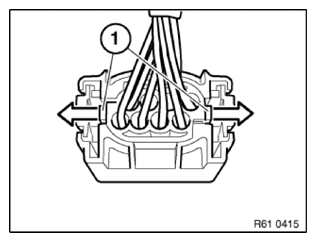

Press locking mechanism (1) in arrow direction and slide connector forward.

Fig 1: Pressing Locking Mechanism
G11774894Courtesy of BMW OF NORTH AMERICA, INC.

Press locking hooks (2) downward and slide locking mechanism (1) out.

Fig 2: Pressing Locking Hooks
G11774895Courtesy of BMW OF NORTH AMERICA, INC.

Press down snap-in hooks (1) with screwdriver and pull out cable with contact towards rear.

Fig 3: Pressing Down Snap-In Hooks With Screwdriver
G11774896Courtesy of BMW OF NORTH AMERICA, INC.
