61 13... In-line plugs, 20-pin, System D2.5

Special tools required:

Pull locking slide (1) out of connector (2).

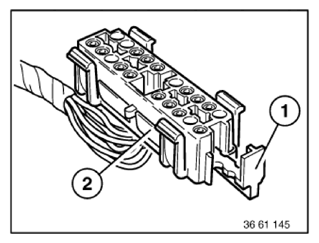

Fig 1: Pulling Locking Slide Out Of Connector
G11774897Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 0 303 press down safety catch (3) of corresponding contact and pull out cable with contact.

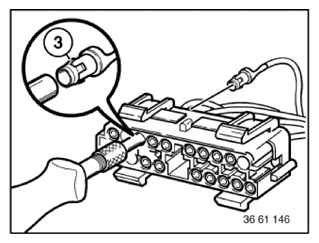

Fig 2: Pressing Down Safety Catch Of Corresponding Contact
G11774898Courtesy of BMW OF NORTH AMERICA, INC.
