61 13... In-line plugs, 2-pin, System MDK 3 plus 2.8

Special tools required:

• 61 0 316

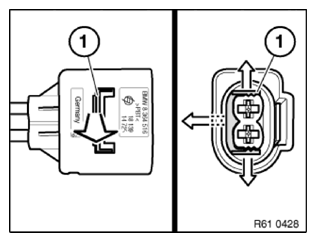

Unlock lock (1) on outside at safety catch and slide out lock (1) to side.

Fig 1: Sliding Out Lock To Side

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Fig 2: Pulling Out Cable With Contact Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.
