61 13... Circular connector, 7-pin, 8-pin, system D2.5

Special tools required:

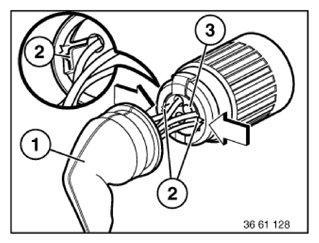

Carefully detach rubber grommet (1).

Carefully press back retaining tabs (2) of internal connector (3).

Fig 1: Pressing Back Retaining Tabs Of Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

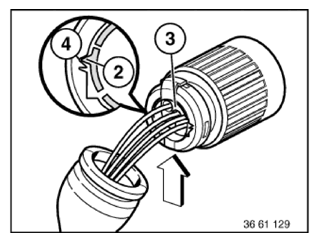

Slide internal connector (3) in arrow direction until retaining tabs (2) lock into groove (4).

Fig 2: Sliding Internal Connector Until Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

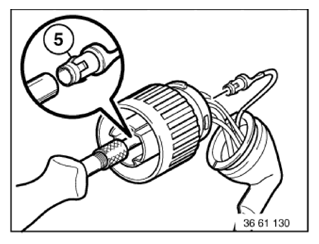

Use special tool 61 0 303 (61 1 132) to press back safety catch (5) of corresponding contact and pull out cable with contact.

Fig 3: Pressing Back Safety Catch Of Corresponding Contact

Courtesy of BMW OF NORTH AMERICA, INC.
