61 13... Circular connector, 20-pin, system D2.5

Special tools required:

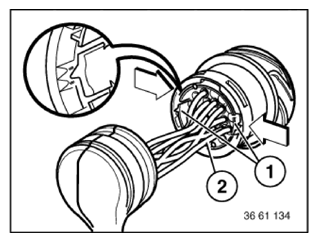

Carefully press back retaining tabs (1) of internal connector (2).

Fig 1: Pressing Back Retaining Tabs Of Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

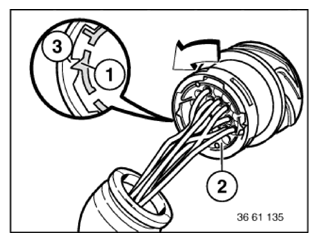

Turn internal connector (2) until retaining lugs (1) snap into release groove (3).

Fig 2: Turning Internal Connector Until Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

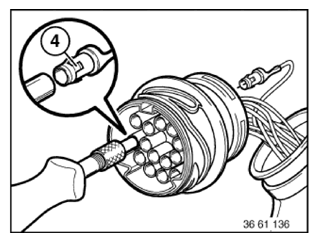

With special tool 61 0 303 press down safety catch (4) of corresponding contact and pull out cable.

Fig 3: Pressing Down Safety Catch Of Corresponding Contact

Courtesy of BMW OF NORTH AMERICA, INC.
