61 13... Circular connector, 13-pin, system D2.5

Special tools required:

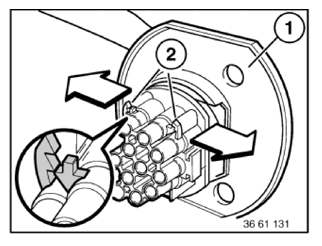

Detach rubber grommet (1).

Carefully pull out locking mechanism (2) in arrow direction.

Fig 1: Pulling Out Locking Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

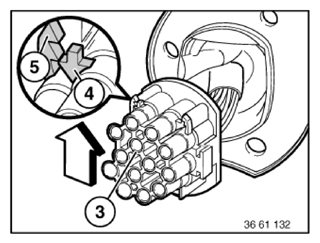

Shift lower section of connector (3) in arrow direction until retaining lugs (4) snap into release groove (5).

Fig 2: Releasing Shift Lower Section Of Connector

Courtesy of BMW OF NORTH AMERICA, INC.

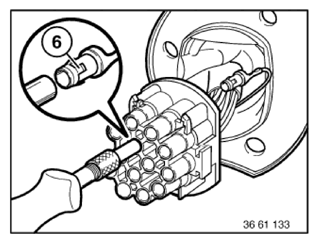

With special tool 61 0 303 , press down retaining lugs (6) of corresponding contact and pull out cable.

Fig 3: Pressing Down Retaining Lugs Of Corresponding Contact

Courtesy of BMW OF NORTH AMERICA, INC.
