Removing and installing/replacing rear center lower strap lining (Cooper Convertible)

Preliminary work needed:

• Remove REAR SEAT .

Removal:

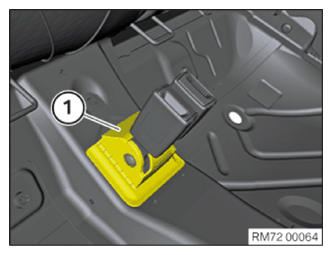

Take out cover (1) from the back to the top and remove towards front.

Courtesy of BMW OF NORTH AMERICA, INC.

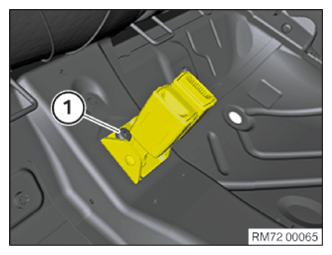

Remove screw (1).

Unlock plug connections and disconnect.

Remove lower strap.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install lower strap.

replace screw (1).

Tighten screw (1).

Tightening torque 72 11 23AZ .

Connect and lock the plug connections.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert cover (1), flap downwards from behind and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install REAR SEAT .
