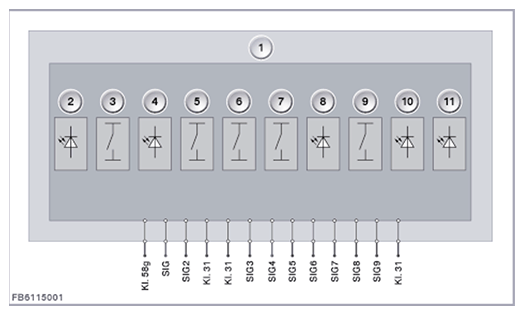

Structure and inner electrical connection
The center console control panel is connected to the vehicle electrical system through a 14-pin plug connection.
| Item | Explanation |
|---|---|
| 1 | Center console control panel |
| 2 | Locator lighting |
| 3 | Park Distance Control button |
| 4 | Function LED |
| 5 | Automatic engine start-stop function button |
| 6 | START-STOP button |
| 7 | Dynamic Traction Control button |
| 8 | Function LED |
| 9 | Button for head-up display or driving experience switch (depending on version) |
| 10 | Function LED |
| 11 | Function LED |
PIN ASSIGNMENT SPECIFICATION
| Pin | Explanation |
|---|---|
| Terminal 58g | Locator lighting, terminal 58g |
| SIG | Signal Park Distance Control button |
| SIG2 | Signal function LED |
| Kl. 31 | Terminal 31 START-STOP button |
| Kl. 31 | Terminal 31 START-STOP button |
| SIG3 | Signal START-STOP button |
| SIG4 | Signal START-STOP button |
| SIG5 | Signal function LED |
| SIG6 | Signal automatic engine start-stop function button |
| SIG7 | Signal function LED |
| SIG8 | Signal Head Up Display button |
| SIG9 | Signal function LED |
| Kl. 31 | Terminal 31, center console control panel |
