Structure and inner electrical connection
A cell block comprises of 16 respectively 12 lithium-ion batteries connected in series. The battery cells are pressed together with pressure plates. 2 temperature sensors are also installed in the cell block. A lid is used for touch protection.
NOTE:
I12: The cell blocks are arranged in 2 rows one above the other. Observe repair instructions.

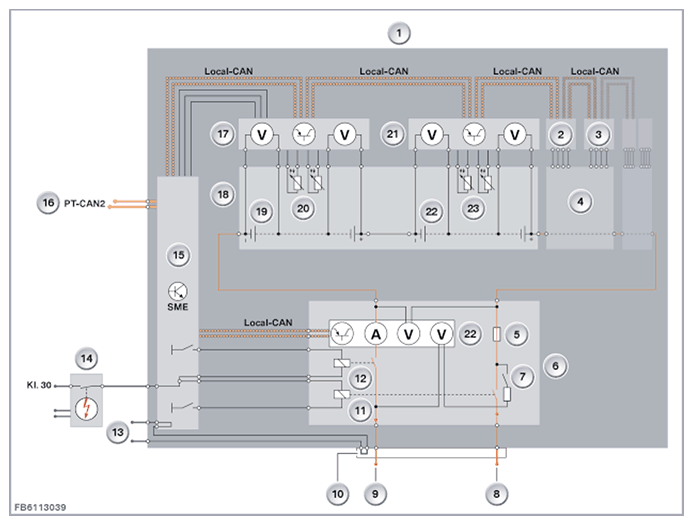

I12 shown
| Item | Explanation |
|---|---|
| 1 | High-voltage battery unit |
| 2 | Cell supervision circuit |
| 3 | Cell supervision circuit |
| 4 | Cell module |
| 5 | Safety fuse |
| 6 | Safety box |
| 7 | Switch contactor for the preloading |
| 8 | High-voltage connection (positive terminal) of the high-voltage battery unit |
| 9 | High-voltage connection (negative terminal) of the high-voltage battery unit |
| 10 | High-voltage interlock loop of the high-voltage connection to the high-voltage electrical system |
| 11 | Switch contactor (positive terminal) |
| 12 | Switch contactor (negative terminal) |
| 13 | Connection to the circuit of the high-voltage interlock loop |
| 14 | Safety battery terminal |
| 15 | SME control unit |
| 16 | Bus connection (PT-CAN2) |
| 17 | First cell supervision circuit with sensors for the measurement of the cell voltage. |
| 18 | Cell block with several battery cells |
| 19 | Lithium-ion battery |
| 20 | Sensors for the measurement of the temperature in the cell module |
| 21 | Second cell supervision circuit with sensors for the measurement of the cell voltage. |
| 22 | Lithium-ion battery |
| 23 | Sensors for the measurement of the temperature in the cell module |
