No import via the USB interface
An import via the USB interface on the AUX-IN connection with a USB port is not possible. This USB interface is only intended for playback of external audio sources. To import/export data (data copy or data backup), a USB interface is available in the vehicle glove box.
| Item | Explanation |
|---|---|
| 1 | AUX-IN connection |
| 2 | 4 pin plug connection |

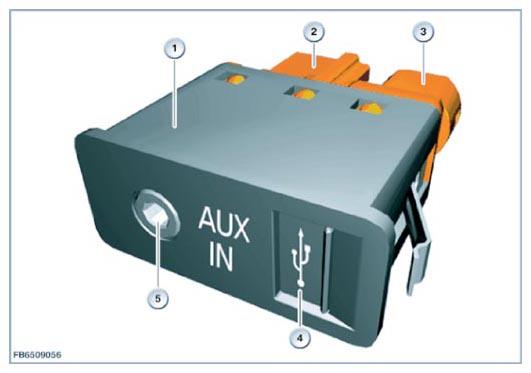

| Item | Explanation |
|---|---|
| 1 | AUX-IN connection with USB port |
| 2 | Plug connection (for AUX-IN connection): 4-pin for SA 6FL 6-pin for SA 6NF |
| 3 | 4-pin plug connection (connection to USB hub or telephone control unit) |
| 4 | USB port (protected by sliding mechanism) |
| 5 | AUX-IN connection |
