Starter motor
NOTE:
Different starter motors are used for manual gearboxes and automatic transmissions.
For automatic transmissions, the starter motor offers the capability for carrying out a reflex start.
With the automatic engine start-stop function, it can happen that both the stop and start processes occur completely simultaneously, which is referred to as "reflex start". In the case of a reflex start, the driver wants to continue driving at exactly the point in time that the engine is stopped.
For automatic transmissions, the starter motor offers the capability for carrying out a reflex start.
With the automatic engine start-stop function, it can happen that both the stop and start processes occur completely simultaneously, which is referred to as "reflex start". In the case of a reflex start, the driver wants to continue driving at exactly the point in time that the engine is stopped.
The starter has the job of rotating the crankshaft of the internal combustion engine at the minimum speed that is necessary for starting up (starting speed).
The starter that is used is coordinated with the engine of the respective vehicle model. The output can be up to 3000 Watts depending on the model.
The starter motor must do more in conjunction with the automatic engine start-stop. The starter motor is therefore configured for a significantly higher number (approximately 8 times) of starting operations. The components of the starter motor have been adapted to the higher requirements.

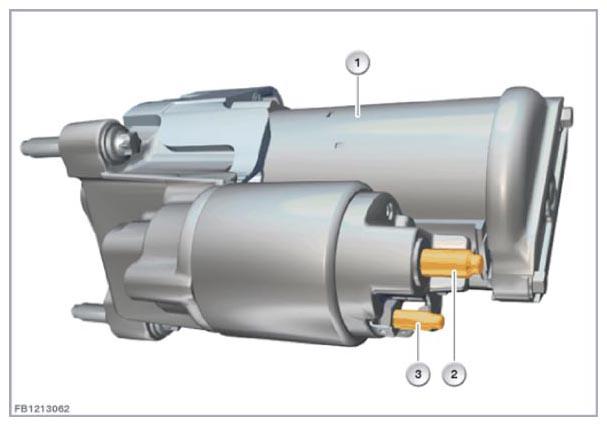

| Item | Explanation |
|---|---|
| 1 | Starter motor |
| 2 | Battery, plus |
| 3 | Terminal 50L |
