Alarm system LED

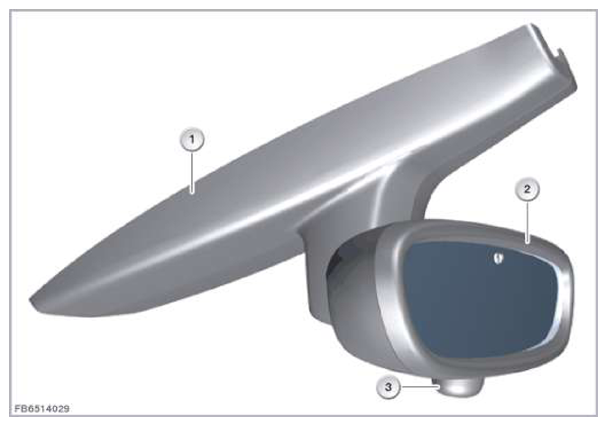

The alarm system LED is located at the bottom of the interior mirror. The alarm system LED visually indicates the statuses of the anti-theft alarm system.

The alarm system LED is activated by the FZD control unit. The following displays are possible:

• DWA LED off: DWA is disarmed.
• Alarm system LED flashes (flashing = 0.5 Hz): DWA is armed.
• Alarm system LED flashes (flashing = 2 Hz) for 10 seconds and then flashes: Alarm system has been activated, but a door or flap is not closed or the ultrasonic interior sensor is faulty.
• Alarm system LED flashes for 5 minutes and then flashes: DWA anti-theft alarm.
• Alarm system LED lights up for 2 minutes and then flashes: The ultrasonic interior sensor and the tilt sensor have been deactivated.
