Functional description
The 12 V power sockets have the following variants:
- 12 V power sockets with cigarette lighter with illuminated ring
- 12 V power sockets, unlit, for connection of an adapter
The purpose of the cigarette lighter and 12 V power socket is to light cigarettes and at the same time provide a voltage source for an array of 12 V electrical devices.

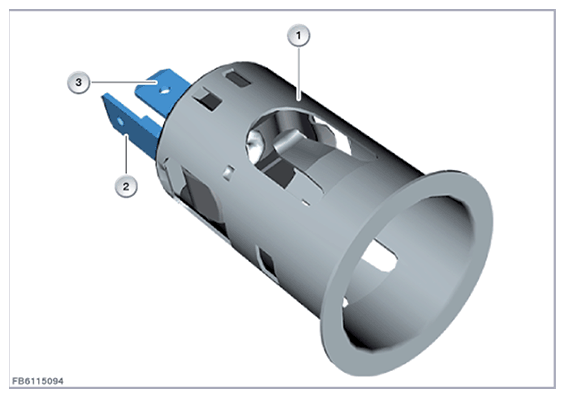

| Item | Explanation |
|---|---|
| 1 | 12 V power socket |
| 2 | Negative connection |
| 3 | Positive connection |
