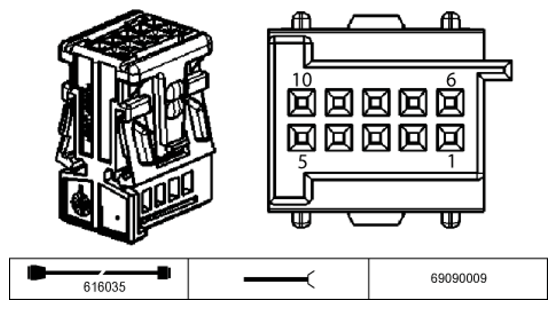

Electrochromic Interior Rear View Mirror A60*1B Connector End View
Pin Assignments At Plug Connector A60*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E/A | Data cable toll function Japan | A42 Headunit up to 2014_06 |
| 2 | -- | Not used | |
| 3 | E | Supply, terminal 15 | Fuse F52 |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | E/A | LIN bus signal | Solder connector |
| 7 | E/A | Data cable toll function Japan | A42 Headunit up to 2014_06 |
| 8 | M | Shield Data cable toll function Japan | A42 Headunit up to 2014_06 |
| 9 | E | Activation LED antitheft alarm system | Roof function centre |
| 10 | M | Ground | Ground point |
