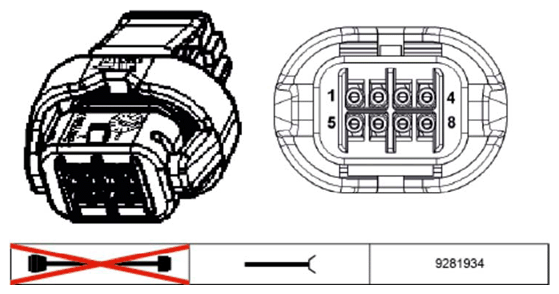

Reversing Camera A24*1B Connector End View
Pin Assignments At Plug Connector A24*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | FBAS signal | Head unit |
| 2 | E | FBAS signal | Head unit |
| 3 | M | Shielding | Terminating resistor |
| 4 | E | Supply, terminal 15 | Fuse F55 |
| 5 | M | Shielding | Head unit |
| 6 | M | Ground | Ground connector |
| 7 | E/A | Body CAN3 bus connection | Terminating resistor |
| 8 | E/A | Body CAN3 bus connection | Terminating resistor |
