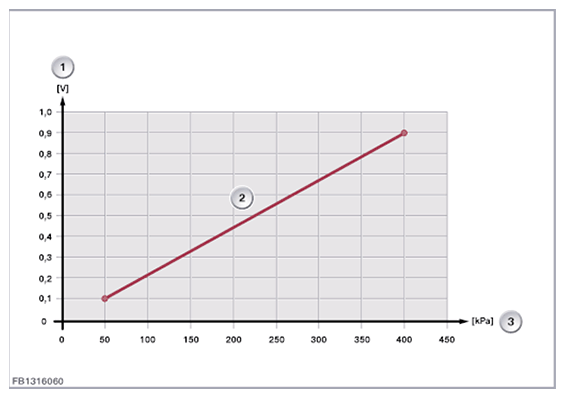

Characteristic curve and setpoint values
The charging pressure information is sent to the engine control across a signal line. The signal for evaluation of the charging pressure fluctuates depending on the pressure. The measuring range of approx. 0.1 to -4.9 volts corresponds to a charging pressure of 50 kPa (0.5 bar) to 400 kPa (4.0 bar).
| Item | Explanation |
|---|---|
| 1 | Voltage |
| 2 | Charge-air pressure characteristic curve |
| 3 | Pressure |
The resistance of the intake air temperature sensor changes depending on the temperature, from 167 kΩ to 150 Ω. This corresponds to a temperature of -40°C to 130°C.
Observe the following setpoint values for the charge air temperature charging pressure sensor:
| Variable | Value |
|---|---|
| Voltage range for charge-air pressure sensor | 0.1 to 0.9 volts |
| Measuring range for charge-air pressure | 0.5 to 4.0 bar |
| Charge-air temperature sensor resolution | ±1 °C |
| Maximum output current | 10 mA |
| Temperature range | -40 °C to 130 °C |
