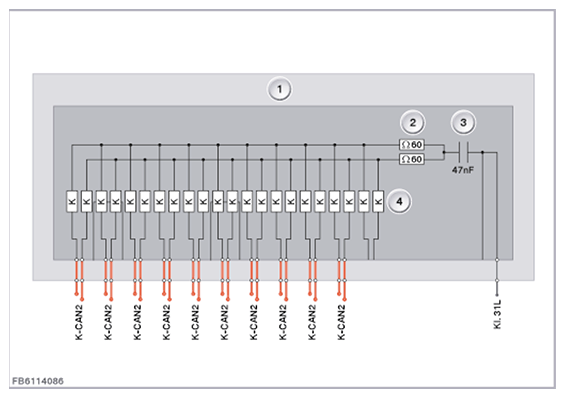

Structure and inner electrical connection
Termination is 120 ohm at the star coupler.
The CAN terminator is connected to the wiring harness via a 26-pin plug connection.
| Item | Explanation |
|---|---|
| 1 | CAN terminator |
| 2 | Terminating resistor |
| 3 | Ignition capacitor |
| 4 | Ferrites |
Pin assignments
NOTE:
The pin assignment is dependent on the optional equipment. Refer to the applicable wiring diagram!
