Characteristic curve and setpoint values
The vacuum information for the brake power assistance is sent via a signal line to the engine control (DME or DDE or EME). The evaluable signal for the vacuum fluctuates depending on the pressure. The measuring range of roughly 0.5 - 4.5 volts corresponds to a vacuum of 5 kPa (0.05 bar) to -105 kPa (-1.05 bar).

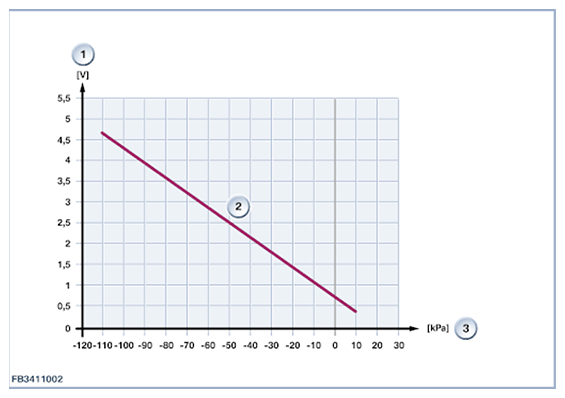

| Item | Explanation |
|---|---|
| 1 | Voltage |
| 2 | Characteristic curve |
| 3 | Vacuum for brake power assistance |
Please note the following specifications for the brake vacuum sensor:
| Variable | Value |
|---|---|
| Voltage range | 4.5 to 5.5 V |
| Current consumption in normal operating mode | 10 mA |
| Response time | 1 ms |
| Temperature range | -40 to 85 °C |
