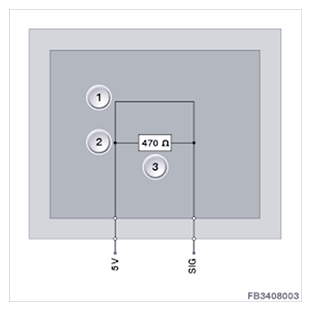

Structure and inner electrical connection
2-stage brake pad wear sensor: The brake pad wear sensor operates in 2 stages. A resistor is additionally integrated in the 2nd stage. The DSC detects the 2nd stage via the changed voltage measurement.
1-stage brake pad wear sensor: When the conductor path is worn through, approx. 5 % of the remaining brake pad thickness is reached.
| Index | Explanation |
|---|---|
| 1 | Data point |
| 2 | Data point 4 mm (2-stage brake pad wear sensor only) |
| 3 | Resistor 470 Ω (2-stage brake pad wear sensor only) |
Pin assignments
The brake pad wear sensor is supplied with 5 V by the DSC control unit.
| Pin | Explanation |
|---|---|
| 5 V | Voltage supply 5 Volt |
| SIG | Signal |
