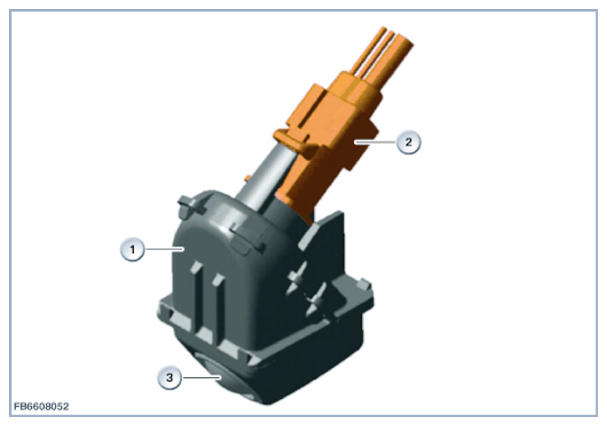

Rear view camera

In the same way as the two bumper cameras, the rear view camera makes its signals available to the TRSVC control unit via an LVDS data line. The signals are forwarded to the video switch (VSW - installed depending on the variant) and subsequently to the Car Information Computer (CIC) over CVBS lines. The CIC transmits the image data via an LVDS data line to the central information display (CID). The image data are displayed on the CID.

Courtesy of BMW OF NORTH AMERICA, INC.

The rear view camera is fitted in the handle strip in the tailgate offset to the right. The reversing camera is connected to the all-round vision camera control unit by the following lines:

• LIN bus
• LVDS data line

Dirt can impair the image quality of the reversing camera. To flush the lenses, comply with the Owner's Handbook.
