Exterior mirror camera
From the driver's side a certain area of the passenger's side cannot be viewed. The view is obscured by the exterior mirror and the A-pillar. So that this area can still be viewed, the exterior mirror is equipped with the exterior mirror camera. The exterior mirror cameras are a constituent for all-round visibility (as well as national-market version Japan).
The two exterior mirror cameras make their signals available to the all-round vision camera control unit over a LVDS data line.

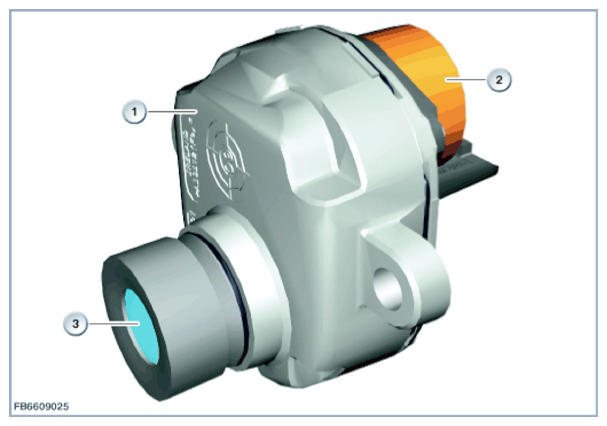

| Item | Explanation |
|---|---|
| 1 | Exterior mirror camera |
| 2 | 4 pin plug connection |
| 3 | Lens |
The two exterior mirror cameras are located on the underside of the driver's door mirror and passenger side mirror. The exterior mirror cameras are connected to the all-round vision camera control unit by the following lines:
- LIN bus
- LVDS data line
Dirt can impair the image quality of the exterior mirror cameras. To flush the lenses, comply with the Owner's Handbook.
