Bumper camera
The bumper cameras enable an early view of crossing traffic at exits and junctions with a poor viewing angle. Road users concealed by objects on the sides are recognized relatively late from the driver's seat.
The detection range of the cameras is a maximum of 100 metres.
The two bumper cameras and the rear view camera makes their signals available to the TRSVC control unit via an LVDS data line.

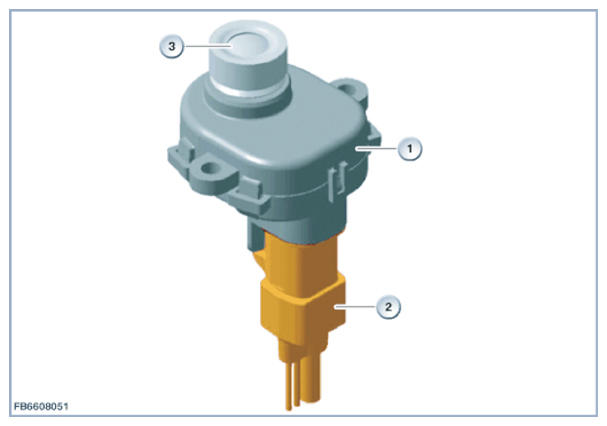

| Item | Explanation |
|---|---|
| 1 | Bumper camera |
| 2 | 4 pin plug connection |
| 3 | Lens |
The two bumper camera are located on the left and right sides in the bumper. The bumper cameras are connected to the all-round vision camera control unit by the following lines:
- LIN bus
- LVDS data line
NOTE:
Follow the instructions in the operating instructions!
Dirt can impair the image quality of the bumper cameras. To flush the lenses, comply with the Owner's Handbook.
