61 31... Removing and installing (replacing) the driving dynamics control

WARNING: This page is about a different variant/trim than selected.

Removal:

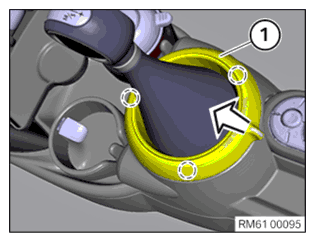

Unclip bezel with driving dynamics control (2) towards the top.

Fig 1: Unclipping Bezel With Driving Dynamics Control Towards Top

G11789586

Courtesy of BMW OF NORTH AMERICA, INC.

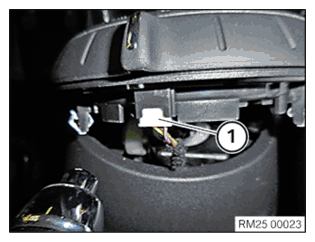

Unlock and disconnect connector on driving dynamics control (1).

Fig 2: Disconnecting Connector On Driving Dynamics Control

G11789587

Courtesy of BMW OF NORTH AMERICA, INC.

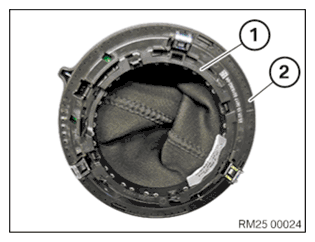

Detach retaining ring with bellows (1) from bezel with driving dynamics control (2).

Fig 3: Detaching Retaining Ring With Bellows

G11789588

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

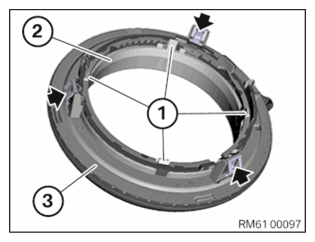

NOTE: The clamps on the holder (3) must not be damaged or missing.
Detents (1) on the bezel (2) must not be damaged or missing.

Fig 4: Locating Clamps On Holder

G11789589

Courtesy of BMW OF NORTH AMERICA, INC.

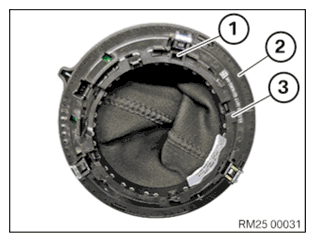

Insert retaining ring with bellows (3) into bezel with driving dynamics control (2).

NOTE: The guide lug (1) must snap into place in the guide.

Fig 5: Inserting Retaining Ring With Bellows Into Bezel

G11789590

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) to driving dynamics control.

Fig 6: Disconnecting Connector On Driving Dynamics Control

G11789587

Courtesy of BMW OF NORTH AMERICA, INC.

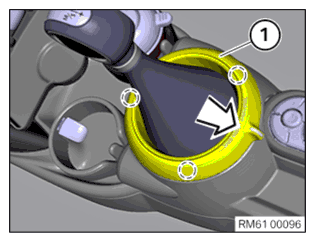

Clip in bezel with driving dynamics control (2) by pushing it down.

Fig 7: Locating Clip In Bezel With Driving Dynamics Control

G11789592

Courtesy of BMW OF NORTH AMERICA, INC.
