61 13... Special tools for wiring harness repairs

Special tools required:

• 61 0 400
• 61 1 100
• 61 4 320
• 61 0 200
  Fig 1: Special Tools Kit

  Courtesy of BMW OF NORTH AMERICA, INC.
• 61 0 210
• 61 0 220
• 61 0 230
• 61 0 240

Repair product range, vehicle electrical system:

Single parts for wiring harness repairs are available via BMW/MINI.

Release and press-out tool:

• Special tool 61 0 400
• Special tool 61 1 100

Handling:

• NOTES FOR OPENING CONTACTS AND LOCKS  of different connector contact systems

Cutting to length and strip off insulation from cables:

Use wire stripper tool MultiStrip10.

Handling:

• CUTTING CABLES TO LENGTH AND STRIP OFF INSULATION

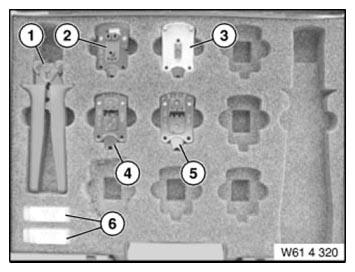

Crimping stop parts (small contacts) and butt connectors:

• Special tool 61 4 320
  1. Tool without crimping head
  2. Crimping head (STRIP OFF INSULATION AND CUTTING FIBER-OPTIC CABLES TO LENGTH)
  3. Crimping head (CRIMPING FIBER-OPTIC CABLE CONTACTS)
  4. Crimping head (CRIMPING MQS CONTACTS)
  5. Crimping head (CRIMPING MPQ CONTACTS)
     Fig 7: Crimping Stop Parts (Small Contacts)

     Courtesy of BMW OF NORTH AMERICA, INC.
  6. Replacement blade (face-cutting fiber-optic cables)
  7. Replacement blade with tool (insulation stripping unit)
  8. Universal crimping head

Crimping stop parts (large contacts) and butt connectors:

• Special tool 61 0 200 (crimping set)
• Special tool 61 0 210 (matrix set SLK 8)
• Special tool 61 0 220 (matrix set SLK 2.8)
• Special tool 61 0 230 (matrix set MAK 8/DFK4)
• Special tool 61 0 240 (butt connector 4.0 - 6.0 mm² )
