61 13... In-line connectors, 30-pin, Hybrid System MQS/MPQ

WARNING: This page is about a different variant/trim than selected.

Manufactured by AMP: The following contact types without single conductor seal can be fitted in the connector housings:

Socket housing:

Raise lock (1) on housing (2).

Push contact carrier (3) out of housing (2).

NOTE: Pushing out the contact carrier releases the secondary locks of the socket contacts.

Fig 1: Pushing Contact Carrier Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down snap-in hooks (1) of contact bushing in opening of contact carrier with a small screwdriver.

Pull wire with contact bushing in arrow direction as far as secondary lock (2).

Fig 2: Pulling Wire With Socket Contact As Far As Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down snap-in hooks in secondary lock (1) again and pull cable with contact bushing (2) completely out of contact carrier (3).

Fig 3: Pulling Wire With Socket Contact Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

Contacts 1... 13 and 19... 27:

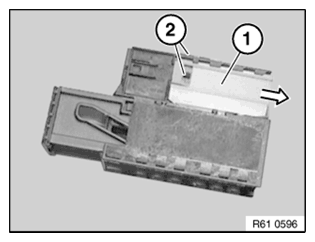

Raise locking slide (1) on both sides (2) of housing and detach.

NOTE: Detaching the locking slide releases the secondary locks of the pin contacts.

Fig 4: Raising Locking Slide On Both Sides Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Contacts 14... 18 and 28... 30:

Pull slide (1) outwards completely.

Raise lock (2) on housing.

Pull contact carrier (3) out of housing.

NOTE: Pulling out the contact carrier releases the secondary locks of the pin contacts.

Fig 5: Pulling Contact Carrier Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

The pin contacts are pulled out of a contact carrier as described under "Socket housing".
