61 13... Crimping stop parts

Special tools required:

• 0 494 159
• 0 496 849
• 0 496 833
• 2 407 379
• 61 4 320
• 61 4 340
• 61 0 210
• 61 0 220
• 61 0 230

Preliminary work needed:

• Notes for OPENING CONTACTS AND LOCKS  of different connector systems.
• CUTTING CABLES TO LENGTH AND STRIPPING OFF INSULATION

Special tools for wiring harness repair.

New part for vehicle electrical system (stops and housing) available via BMW/MINI.

1. Crimping of NanoMQS stops (only G11; G12)

   Crimping of NanoMQS contacts (MQS).

   • Special tool handle 0 494 159 or 0 496 849
   • Special tool (die-plate) 0 496 833
   • Stripping tool 2 407 379
2. Crimping of stops up to 2.5 mm 2

   Crimping MICRO QUADLOCK SYSTEM CONTACTS (MQS) .

   • Special tool 61 4 320

   Crimping MICRO POWER QUADLOCK CONTACTS (MPQ) .

   • Special tool 61 4 320

   Crimping miscellaneous stop parts up to 2.5 mm2

   • Special tool 61 4 340 (as of 03/2010 replaces 61 4 328)
3. Crimping of stops above 2.5 mm 2

   Crimping load current contacts (LSK 8).

   • Special tool 61 0 210

   Crimping SLK 2.8.

   • Special tool 61 0 220

   Crimping double spring contact (DFK 40)

   Crimping MAK 8

   • Special tool 61 0 230

Checking crimping

Check insulation crimping (8) and wire crimp (9) against following illustrations to ensure crimps are correctly located.

Correct crimping:

Visible conductor end (10).

Visible insulation end (11).

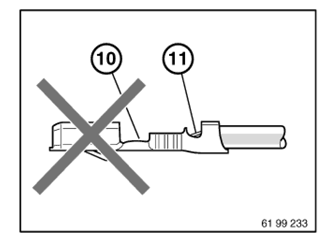

Incorrect crimping:

Conductor end (10) inserted too far.

Insulation end (11) in wire crimp.

If necessary, repeat crimping with a new contact.

Incorrect crimping:

Conductor end (10) not visible.

Insulation end (11) not visible.

If necessary, repeat crimping with a new contact.
