61 35 360 Removing and installing control unit for camera-based driver support systems (KAFAS)

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Preliminary work needed:

Removal:

Release detent on equipment holder.

Feed out KAFAS control unit (1) from equipment holder (2).

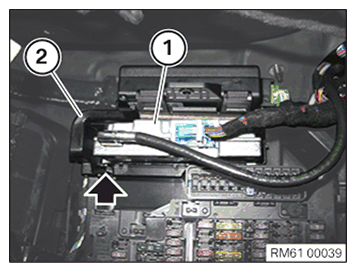

Fig 1: Releasing Detent On Equipment Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) on KAFAS control unit (2) and disconnect.

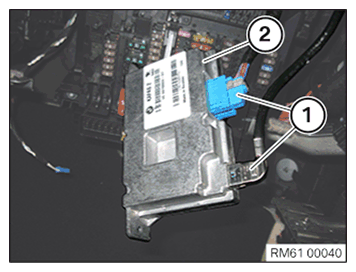

Fig 2: Locating Connector On KAFAS Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (1) to KAFAS control unit (2).

Fig 3: Locating Connector On KAFAS Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Join KAFAS control unit (1) in equipment holder (2).

NOTE: Ensure detent of KAFAS control unit (1) is correct in equipment holder (2).

Fig 4: Releasing Detent On Equipment Holder

Courtesy of BMW OF NORTH AMERICA, INC.
