61 35 278 Remove/install Body Domain Controller (BDC)

Preliminary work needed:

• Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
• Remove GLOVE COMPARTMENT
• Remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR ON RIGHT .

Removal:

Unlock the positive battery cable connector:

1. Loosen lock (1) in arrow direction.
2. Unfasten catch (2) on positive battery lead connector (3).
3. Remove positive battery lead connector (3) in arrow direction.

Fig 1: Loosening Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect all connectors (1) in marked area.

Release detents and pull control unit BDC (2) to the side out of holder.

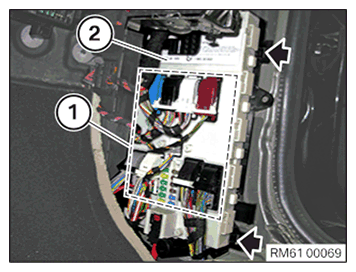

Fig 2: Pulling Control Unit BDC To Side Out Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join control unit BDC (2) to the side in holder.

Connect all connectors (1) in marked area.

Fig 3: Pulling Control Unit BDC To Side Out Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Lock positive battery cable connector:

1. Join positive battery cable connector (3) against arrow direction.
2. Lock detent (2) to positive battery cable connector (3).
3. Close lock (1) against arrow direction.

Fig 4: Loosening Lock

Courtesy of BMW OF NORTH AMERICA, INC.
