61 12... Removing and installing battery cover

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe SAFETY INSTRUCTIONS for handling vehicle battery.

Removal:

Partially detach seal (1).

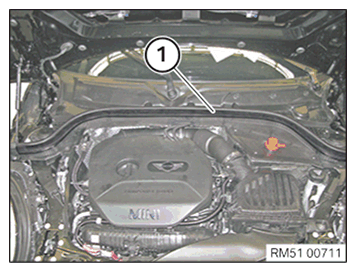

Fig 1: Locating Battery Cover Seal

G11649055

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen cap nuts (1).

Open locks (2) by turning them counter clockwise.

Remove windshield panel cover (3).

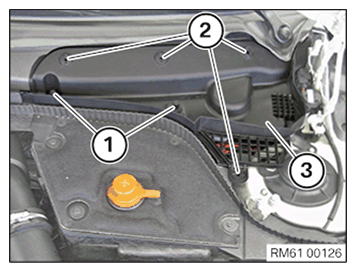

Fig 2: Locating Windshield Panel Cover And Cap Nuts

G11649056

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Remove battery cover (2).

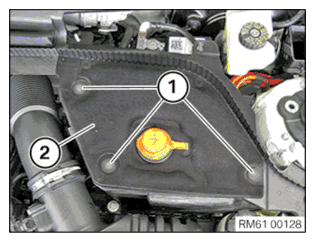

Fig 3: Locating Battery Cover And Screws

G11789249

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Thread in the battery cover (2).

Tighten down screws (1).

Tightening torque 61 21 6AZ .

Fig 4: Locating Battery Cover And Screws

G11789249

Courtesy of BMW OF NORTH AMERICA, INC.

Thread in the windshield panel cover (3).

Turn the locks (2) to the right until the stop is reached.

Tighten cap nuts (1).

Tightening torque 61 21 6AZ .

Fig 5: Locating Windshield Panel Cover And Cap Nuts

G11649056

Courtesy of BMW OF NORTH AMERICA, INC.

Join gasket (1).

Fig 6: Locating Battery Cover Seal

G11649055

Courtesy of BMW OF NORTH AMERICA, INC.
