61 34... Removing and installing/replacing 12-V power socket

Special tools required:

• 61 0 250

Preliminary work needed:

• Remove USB AUDIO INTERFACE CONNECTING SOCKET
• Remove RIGHT TRUNK WHEEL ARCH PANEL

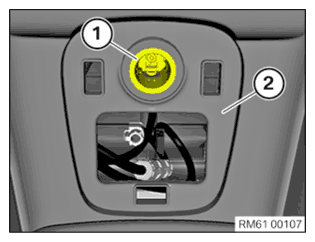

Front center console:

Disconnect the connector from the socket through the opening.

Remove the socket with a special tool.

Fig 1: Disconnecting Connector From Socket

Courtesy of BMW OF NORTH AMERICA, INC.

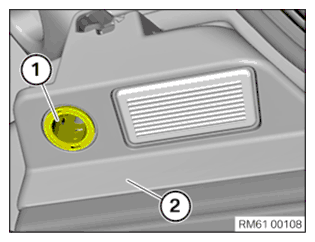

Trunk, right:

Remove the socket with a special tool.

Fig 2: Removing Socket With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out 12-V power socket from housing with special tool 61 0 250 until connector is at bottom of light ring.

Fig 3: Pulling Out 12-V Power Socket From Housing With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
