31 00... Notes on repairing threads

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

NOTE: Damaged threads on the engine mount may be repaired with Helicoil thread inserts. Comply with the procedure described in the example.

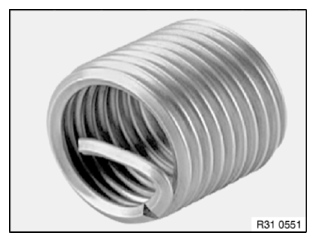

Fig 1: Helicoil Thread Inserts

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure:

Create a clean core hole; if necessary, drill out screw remnants

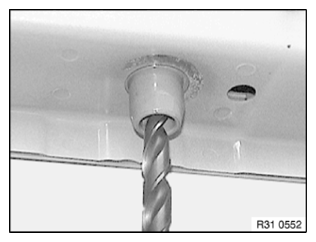

Fig 2: Drilling Out Screw Remnants
Courtesy of BMW OF NORTH AMERICA, INC.

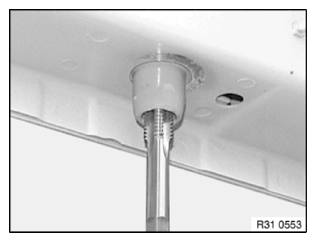

Create locating thread for Helicoil thread insert

Fig 3: Creating Locating Thread For Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.

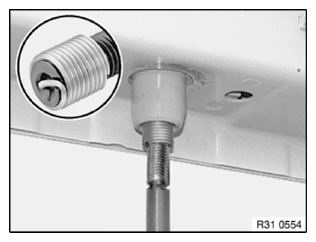

Pick out Helicoil thread insert in accordance with the table and screw into the locating thread until flush with the original thread

Fig 4: Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.

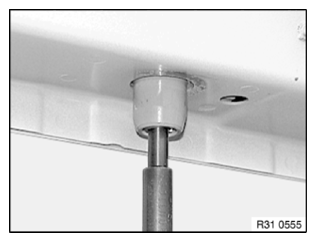

Break drive pin and remove

Fig 5: Removing Break Drive Pin

Courtesy of BMW OF NORTH AMERICA, INC.
