31 11 001 Replacing front axle support

WARNING: This page is about a different variant/trim than selected.

Special tools required:

31 5 251

Necessary Preliminary tasks:

Remove FRONT AXLE COMPLETE .

Removal:

Loosen screws (1).

Remove heat shield (2).

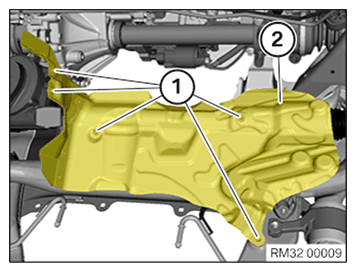

Fig 1: Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

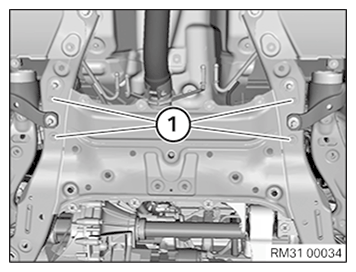

Fig 2: Anti-Roll Bar Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from anti-roll bar.

Remove anti-roll bar (1) with retaining bracket from front axle.

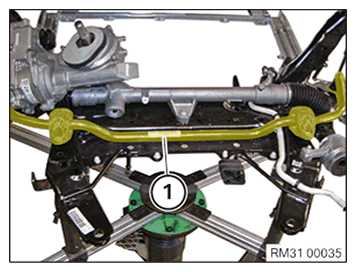

Fig 3: Anti-Roll Bar With Retaining Bracket On Front Axle

Courtesy of BMW OF NORTH AMERICA, INC.

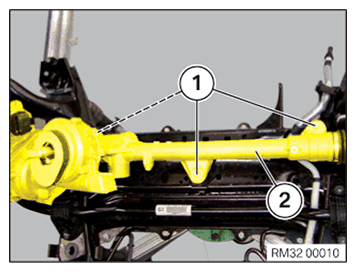

Fig 4: Steering Gear And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove steering gear (2).

Loosen screws (1).

Remove deformation element adapter (2) from front axle support.

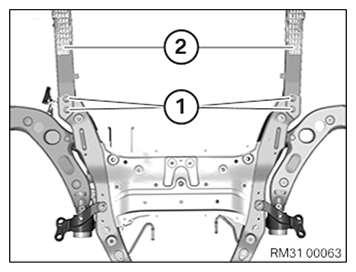

Fig 5: Front Axle Support Deformation Element Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

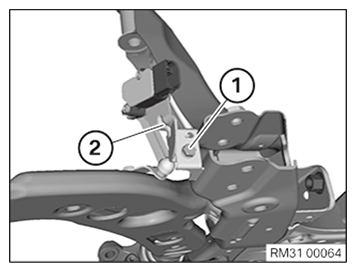

Fig 6: Front Axle Support Ride Height Sensor Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Only for right ride height sensor:

Loosen screw (1).

Release ride height sensor holder (2) from front axle support.

Loosen screws (1).

Release screw (2).

Remove wishbone on left and right.

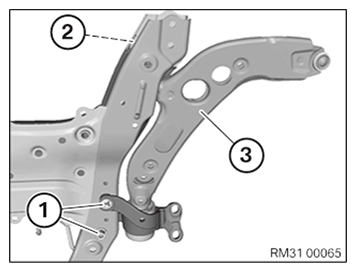

Fig 7: Wishbone And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

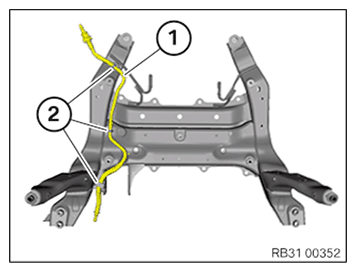

Fig 8: Purge Air Line And Cable Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the line clips and cable clamp (2).

Remove purge air line (1).

Installation:

Secure the purge air line (1) to the new front axle support using the line clips and the cable clamp (2).

Fig 9: Purge Air Line And Cable Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Wishbone And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Place new front axle support on special tool 31 5 251 and secure with tensioning strap.

Align wishbone (3).

Replace screw (2).

Part: Screw

Screw in screw (2).

Do not yet tighten screw (2)!

Tighten down screws (1).

Tightening torque 31 12 3AZ

Tighten screw (2).

Tightening torque 31 12 2AZ .

Only for right ride height sensor:

Align ride height sensor holder (2) to front axle support.

Fig 11: Front Axle Support Ride Height Sensor Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 37 14 2AZ .

Fig 12: Front Axle Support Deformation Element Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

Align deformation element adapter (2) to front axle support.

Tighten down screws (1).

Tightening torque 31 11 3AZ .

Attention !

The bulkhead gasket (1) of the electronic power steering (EPS) must always be replaced!

Remove gasket (1).

Clean surface on steering gear.

Parts: Bulkhead gasket

Fig 13: Electronic Power Steering Bulkhead Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Position and bond the new gasket (1).

Fig 14: Steering Gear And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Align steering gear (2).

Replace screws (2).

Parts: Bolts

Tighten down screws (1).

Tightening torque 32 00 1AZ .

Place anti-roll bar (1) with retaining bracket on front axle and align.

Fig 15: Anti-Roll Bar With Retaining Bracket On Front Axle

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Anti-Roll Bar Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (1).

Parts: Bolts

Tighten screws (1) on anti-roll bar.

Tightening torque 31 35 3AZ .

Align heat shield (2).

Tighten down screws (1).

Tightening torque 32 00 2AZ .

Fig 17: Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install FRONT AXLE .
Carry out wheel alignment procedure. See ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
