32 31 020 Removing and installing/replacing lower section of steering column shroud

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks :

Removal :

Pull off steering column shroud lower section (1) downwards.

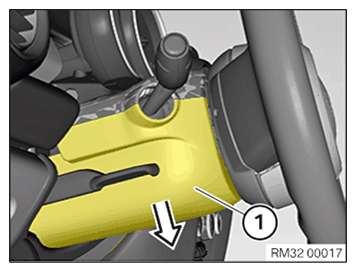

Fig 1: Pulling Steering Column Shroud Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

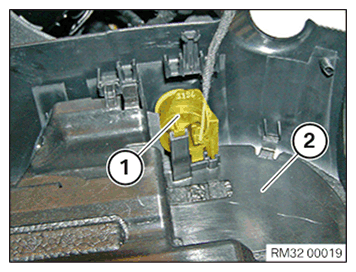

Fig 2: Emergency Start Aerial And Steering Column Shroud Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip emergency start aerial (1).

Remove steering column shroud lower section (2).

Installation :

Insert emergency start aerial (1) into steering column shroud lower section (2).

Fig 3: Emergency Start Aerial And Steering Column Shroud Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

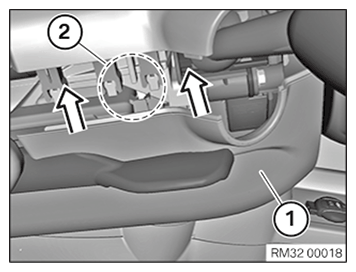

Fig 4: Connecting Lock Steering Column Shroud Lower Section Onto Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock steering column shroud lower section (1) onto steering column.

Make sure when doing this that guide of the steering column is inserted into guide of steering column shroud (2)!
