65 82 300 Removing and installing (replacing) Touchbox controller control unit

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

REMOVAL:

Disconnect plug connection (1).

Loosen the screws (2).

Remove control unit (3).

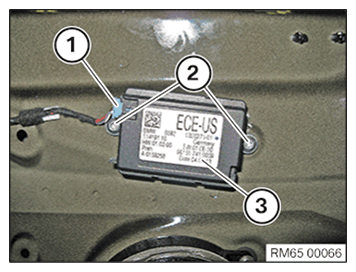

Fig 1: Locating Touchbox Controller Control Unit Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

INSTALLATION:

Position control unit (3).

Tighten down screws (2).

Join plug connection (1).

Fig 2: Locating Touchbox Controller Control Unit Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.
