62 30... Replace the sound insulation for the Head Up Display

WARNING: This page is about a different variant/trim than selected.

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

IMPORTANT: When removing sound insulation, particles may fall into Head Up Display.

If necessary, carefully remove particles.

Protect Head Up Display from damage.

Removal:

Preliminary work needed:

Fold out service flap (1) in arrow direction.

NOTE: Release service cover (1) on the side using special tool 64 1 020 .

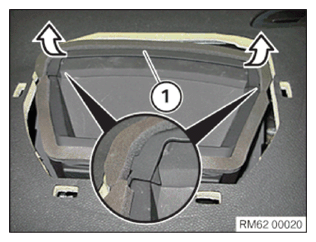

Fig 1: Folding Out Service Flap
G11775037Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The service cover can only be unclipped in only one particular position.

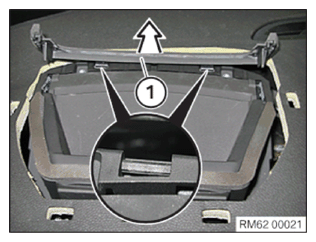

Carefully unclip service cover (1) towards the front.

Fig 2: Removing Service Cover
G11775038Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: When removing sound insulation, particles may fall into Head Up Display.

If necessary, carefully remove particles.

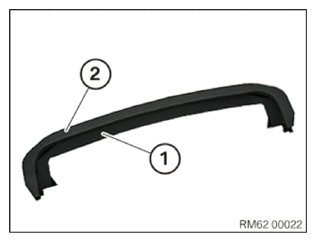

Carefully detach the sound insulation (2) from the service cover (1).

If applicable, carefully remove the residue of the sound insulation (1) via the special tool 64 1 020 .

Fig 3: Locating Sound Insulation From Service Cover
G11775039Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: When removing sound insulation, particles may fall into Head Up Display.

If necessary, carefully remove particles.

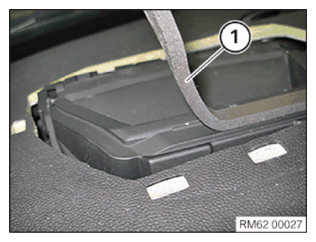

Carefully detach the rear sound insulation (1) from the Head-Up Display.

If necessary, carefully remove sound insulation (1) residues using special tool 64 1 020 .

Fig 4: Locating Rear Sound Insulation From Head-Up Display
G11775040Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: The adhesive area (2) must be as free as possible of sound insulation residues.
Fig 5: Sound Insulation Residues Adhesive Area
G11775041Courtesy of BMW OF NORTH AMERICA, INC.

Detach the liner (2) from the sound insulation (1).

NOTE: Do not tap bonding surface.
Fig 6: Locating Liner From Sound Insulation
G11775042Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Avoid excessive pulling on sound insulation (2) to prevent elongation of sound insulation (2).

Make sure sound insulation (2) is properly seated and bonded on service cover (1).

Bond sound insulation (2) onto service cover (1), starting with one side, without applying pressure.

If necessary, carefully detach the sound insulation (2) and correct.

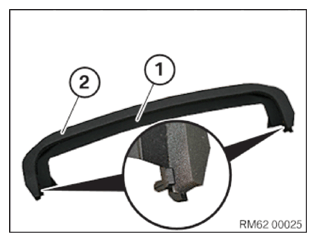

Fig 7: Locating Sound Insulation Onto Service Cover
G11775043Courtesy of BMW OF NORTH AMERICA, INC.

If sound insulation (2) is seated properly, firmly press it on service cover (1).

NOTE: The service cover can only be clipped on in one particular position.

Carefully clip in service cover (1).

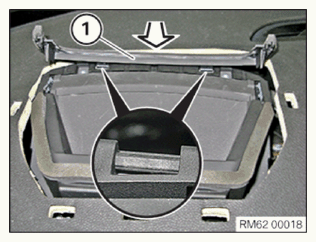

Fig 8: Installing Service Cover Clip
G11775044Courtesy of BMW OF NORTH AMERICA, INC.

Close service cover (1) in arrow direction.

NOTE: Make sure the service flap (1) is properly engaged.
Fig 9: Closing Service Cover
G11775045Courtesy of BMW OF NORTH AMERICA, INC.

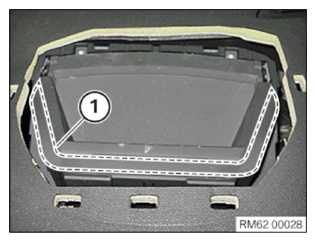

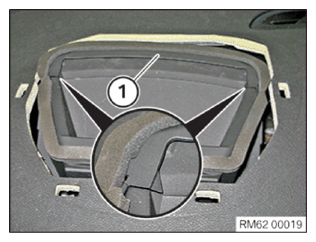

NOTE: The adhesive area (1) must be as free as possible of sound insulation residues.
Fig 10: Sound Insulation Residues Adhesive Area
G11775046Courtesy of BMW OF NORTH AMERICA, INC.

Slightly detach the liner (2) from the sound insulation (1) on one corner.

NOTE: Do not tap bonding surface.
Fig 11: Locating Liner From Sound Insulation On Corner
G11775047Courtesy of BMW OF NORTH AMERICA, INC.

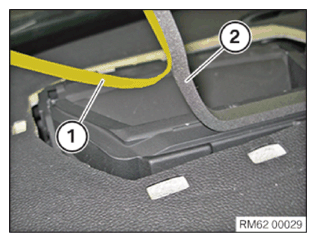

NOTE: Avoid excessive pulling on sound insulation (2) to prevent elongation of sound insulation (2).

Make sure that there is a correct fit and bonding of the sound insulation (2).

Detach the liner (1) and bond the sound insulation (2) onto the Head-Up Display at the same time, starting on one side. Do not apply any pressure.

If necessary, carefully detach the sound insulation (1) and correct.

When the fit of the sound insulation (2) is correct, tightly press it.

Fig 12: Pulling Sound Insulation
G11775048Courtesy of BMW OF NORTH AMERICA, INC.

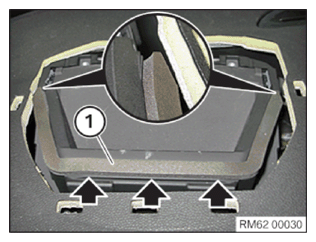

NOTE: Make sure the sound insulation (1) sits and bonds properly on the Head-Up Display.

If the sound insulation (1) sits properly, firmly press it on the Head-Up Display.

Fig 13: Locating Sound Insulation On Head-Up Display
