Removing and installing/replacing the oxygen sensor monitor (B36 engine) (Cooper base)
Special tools required:
- 11 7 020

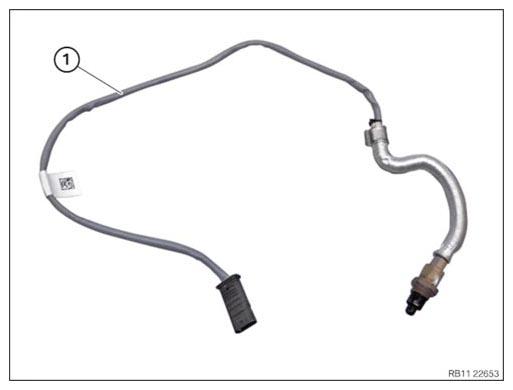

The cable of the oxygen sensor monitor (1) is gray.
The installation location of the oxygen sensor monitor is behind the catalytic converter.
Only perform these tasks after exhaust system has cooled down.
Attention!
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Do not pull on cables when disconnecting connectors and plug connections.
Preliminary work needed:
- Remove CLEAN AIR PIPE .
Removal:

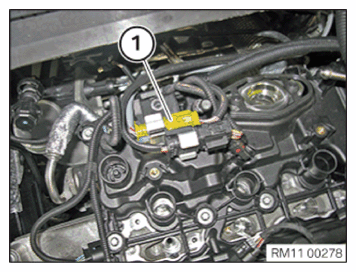

Unclip connector (1) of the oxygen sensor monitor from bracket.
Unlock and disconnect connector (1) of the oxygen sensor monitor.

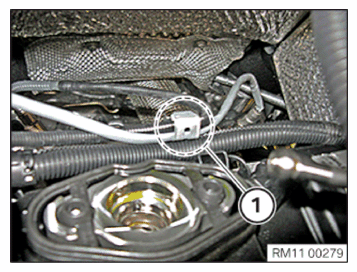

Release cable of the oxygen sensor monitor from holder (1).

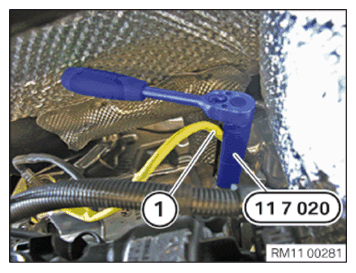

Release oxygen sensor monitor (1) with special tool 11 7 020.
Installation:
Installation note:
If an oxygen sensor is reused, thinly and evenly coat only the thread with NEVER- SEEZ COMPOUND OVERVIEW OF CONSUMABLES 4.3 .
Do not clean the Lambda oxygen sensor part that juts into the exhaust pipe system (sensor ceramics) and do not coat it with lubricant.
Screw in oxygen sensor monitor (1) and tighten with special tool 11 7 020.
Tightening torque: 11 78 1AZ .
Clip cable of the oxygen sensor monitor in holder (1).
Connect connector (1) of the oxygen sensor monitor and clip in bracket.
Required follow-up work:
- Install CLEAN AIR PIPE .
- Check function of DME.
