Removing and installing/replacing the Lambda oxygen sensor (B36 engine) (Cooper base)
Special tools required:
- 11 7 020

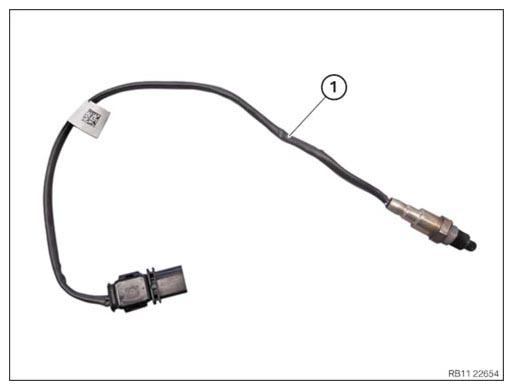

The cable of the Lambda oxygen sensor (1) is black.
The installation location of the Lambda oxygen sensor is in front of the catalytic converter.
Only perform these tasks after exhaust system has cooled down.
Attention!
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Do not pull on cables when disconnecting connectors and plug connections.
Preliminary work needed:
- Remove CLEAN AIR PIPE .
Removal:

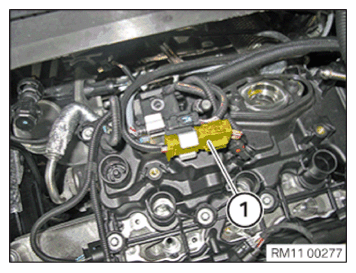

Unclip connector (1) of the Lambda oxygen sensor from bracket.
Unlock and disconnect connector (1) of the Lambda oxygen sensor.
Release cable of the Lambda oxygen sensor from holder (1).

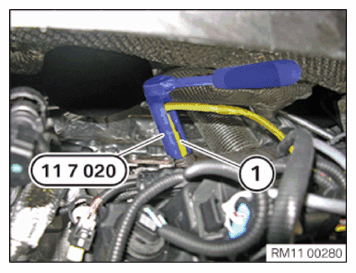

Release Lambda oxygen sensor (1) with special tool 11 7 020.
Installation:
Installation note:
If an oxygen sensor is reused, thinly and evenly coat only the thread with NEVER- SEEZ COMPOUND OVERVIEW OF CONSUMABLES 4.3 .
The part of the oxygen control sensor which projects into the exhaust line (sensor ceramic) must not be cleaned or come into contact with lubricant.
Screw in Lambda oxygen sensor (1) and tighten with special tool 11 7 020.
Tightening torque: 11 78 1AZ .
Clip cable of the Lambda oxygen sensor in holder (1).
Connect connector (1) of the Lambda oxygen sensor and clip in bracket.
Required follow-up work:
- Install CLEAN AIR PIPE .
- Check function of DME.
