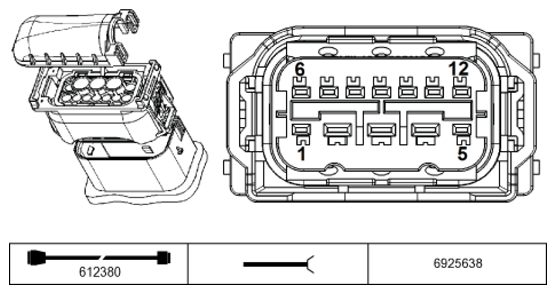

Right Headlight E5*1B Connector End View
Pin Assignments At Plug Connector E5*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Actuation, turn signal light, right | Body Domain Controller |
| 2 | M | Ground | Ground point |
| 3 | E | Supply, terminal 30 | Fuse F103 |
| 4 | M | Ground | Ground point |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | E/A | LIN bus signal | Body Domain Controller |
| 9 | E/A | K-CAN3 data bus | K-CAN3 bus connection |
| 10 | E/A | K-CAN3 data bus | K-CAN3 bus connection |
| 11 | -- | Not used | |
| 12 | -- | Not used |
